• Dacron mylar Dacron-DMD

Dacron mylar Dacron-DMD

Dacron/mylar/Dacron-DMD Two layer of -Polyester Fiber Non-woven Fabric and a single layer of Polyester Film Approved by UL

Product Details

Quick Details Parameter

Place of Origin: : Henan, China
Brand Name: : YAAN
Model Number: : 6630
Type: : Insulation Film
Material: : Composite Polymer
Application: : High Temperature
Colour: : white, pink,blue etc.


Dacron mylar Dacron-DMD
Dacron mylar Dacron-DMD
Dacron Mylar Dacron-DMD consists of two layer of -Polyester Fiber Non-woven Fabric and a single layer of Polyester Film in the center
Features and Applications:
- DMD-Polyester fiber non-woven fabric/Polyester film/Polyester fiber non-woven fabric is class B insulation (130°C)
- DMD-Polyester fiber non-woven fabric/Polyester film/Polyester fiber non-woven fabric has excellent dielectric and mechanical property, high tensile strength and heat resistance.
- DMD-Polyester fiber non-woven fabric/Polyester film/Polyester fiber non-woven fabric can be used as slot, interterm and liner insulation for B-grade motor and electric appliances.

DMD-B:  0.088mm-0.45mm,
DM: 0.15mm-0.35mm
DMDM: 0.20mm, 0.30mm, 0.35mm
- Form:
rolls(width 1000mm), sheets, strips(width >5mm)
- Color:
white, pink and blue.
Other colors can be provided on request
- DM or DMDM can be produced on request
Technical data:
Polyester Fiber Non-Woven Fabric Nominal Thickness  (μm)
High stiffness. Suitable for mechanized insert slot.
More flexible. Suitable for handed insert slot.
Nominal Thickness
Thickness Tolerance
Breakdown Voltage
( No Bending) ≥
Bond Strength
At Room Temp.
No delamination
Bond Strength
At (155±2), 10 Min
No delamination, No blister, No adhesive flow
* 6630A has not 0.15mm as its nominal thickness.
** The first value is for 6630, the last value is for 6630A
For more information please contact sales of YAAN Insulation Ms. Belinda Chen

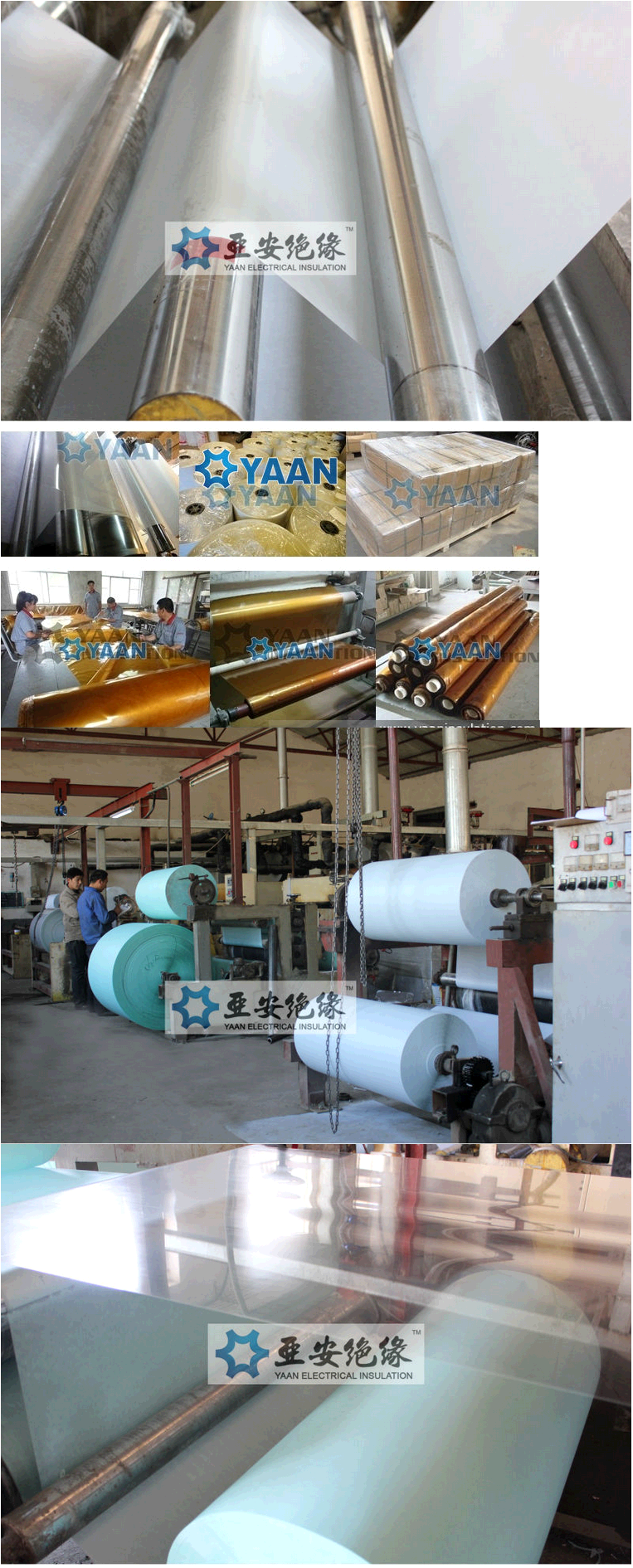

Dacron mylar Dacron-DMD

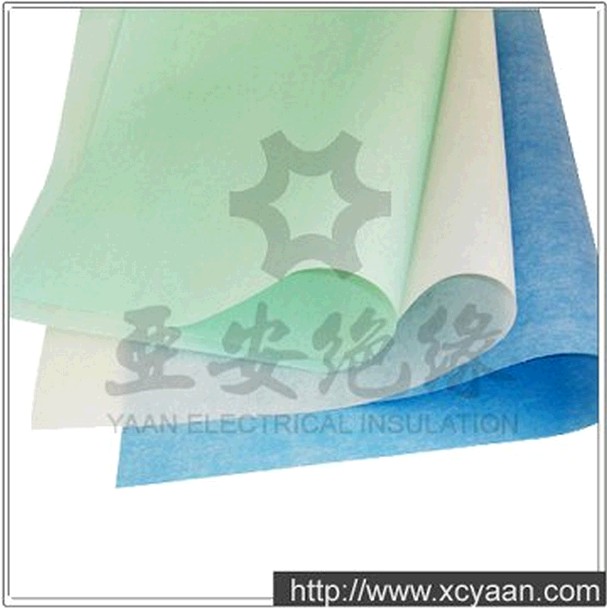

bigger pic

Company Profile

yaan logo
YAAN Insulation was founded in 1986 (The original name is Xuchang Weidu District YAAN Insulating Material Plant) and was completed in corporate restructuring in 2008, then changed its name into Henan YAAN Electrical Insulation Material Plant Co., Ltd. In 2009, YAAN insulation successful mergered Xuchang Xinwenfeng Insulation Material Plant, which has 52 years experience of varnished cloth production.
Since the plant was established, YAAN has maintained the core discipline: "The high quality today is the market tomorrow; the satisfaction of the customers is the life of our enterprise." It has strict requirements of the quality, trying to return every customer with high quality products and good services. Over the past 20 years, persisting the spirit of "Working hard and making a rapid progress" , YAAN has gradually developed into specialized enterprise which produces Class B, Class F and Class H insulation materials, the main products lie in:
1. Flexible Laminates
6520 6521 polyester film/presspaper,
6630DMD insulation paper,
6641F-DMD insulation paper,
6640NMN insulation paper,
6650NHN insulation paper,
MGM polyester glass cloth composite insulation paper,
2. Varnished cloth
oil varnished cloth,
oil varnished synthetic cloth,
alkyd varnished glass cloth,
polyester varnished glass cloth,
silicone varnished glass cloth
3. Textile Tape
Cotton tape
Polyester tape
Fiberglass tape
The insulation system has been approved by UL(UL File No. E310670)and the products have passed ROHS test. With more than 50 years’ experience and innovation, YAAN Insulation Material Plant provides high-quality insulation products and reliable professional service for many military, motor, transformer enterprises.

"Market is created by promotion and benefits are available from management!" YAAN insulating material plant is studying and innovating constantly on the running mode. In this case, the plant has smoothly passed the certificate of ISO9001 quality system certification in 2000 and roundly pushed the TQM Quality management system in 2002. It has studied and developed the activity of "5S" and advocated the more "Flexible Management"since 2005. By constantly exploring, breaking through binding up system as well as getting rid of fixed thoughts, YAAN insulation material plant has found out the suitable management system in the end. The running of the enterprise is simple, efficient and orderly.

In the tide of the integration with global economy, YAAN has paid attention to the international market as well as kept steady domestic market. The Foreign trade department has established since 2003, now the products have exported to about 130 countries, and won a high reputation in its quality and service from the foreign customers.
