• DYJ Series Multi-Function Hydraulic Oil Filtration Device

DYJ Series Multi-Function Hydraulic Oil Filtration Device

1) Vacuum Oil Purifier 2) Latest vacuum dehyration principle 3) Flash Distillation technique 4) Purifying transformer oil

Product Details

Quick Details Parameter

Condition: : New
Flow: : 300L/MIN
Working Pressure: : less than 0.5MPA
Place of Origin: : Chongqing, China
Brand Name: : WANMEI
Model Number: : DYJ-300
Usage: : Insulation Oil
Voltage: : Voltage:
Power(W): : 170000
Dimension(L*W*H): : 180*145*200CM
Weight: : 2200KGS
Certification: : ISO9001
After-sales Service Provided: : Engineers available to service machinery overseas
Certificate: : TUV Rheinland
Brand: : OEM available
Warranty: : One year
Color: : Optional

Description

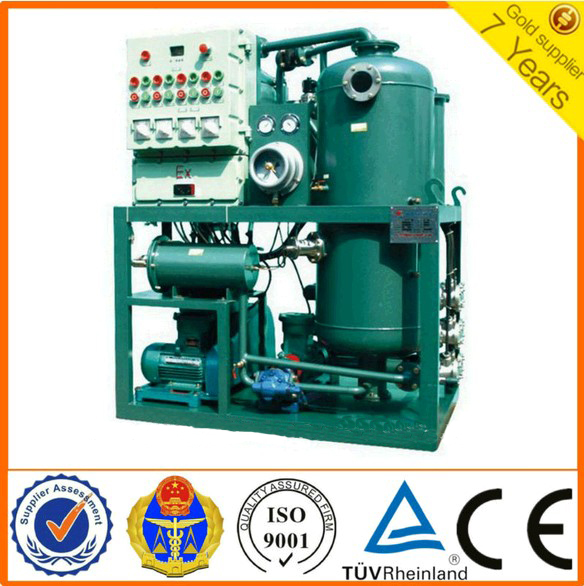

DYJ Series Multi-Function Hydraulic Oil Filtration Device

DYJ Series Multi-Function hydraulic oil filtration device

General Description:

DYJ series oil purifier is a kind of multi-function equipment for dehydration, degassing, and purification process of lubricating oil. It is developed and produced by Wanmei company to deal with different kinds of lubricating oils of various types of kinematical viscosity and flash point. It is ideal equipment for factories, mines, and other enterprises to purify different kinds of lubricating oils. The double-stage and multi-stage oil purifier are more efficient in their operation.

In view of customers’ special requirement, we have also developed DYJ-B series of semi-automatic lubricating oil purifier, DYJ-Q automatic multi-function lubricating oil purifier and DYJ-Ex anti-explosion multi-function lubricating oil purifier. It is suitable to work in different conditions.

Application scope: It is widely used in metallurgy, machinery, oil field, chemistry, mine, electric power generation plant, transportation and manufacturing enterprises for hydraulic oil, gear oil, engine oil, compression oil, freezer oil, heat treatment oil, refrigerator oil, etc. It can quickly break emulsion in oil, remove water, gas and mechanical impurities, light acid and light hydrocarbon from oil, and improve oil quality, resume its lubricating property and ensure normal operation of the equipment.


parameter


DYJ Series Multi-Function hydraulic oil filtration device

DYJ Series Multi-Function hydraulic oil filtration device


Typical Characteristics:

1. Super ability in breaking emulsion, dehydration and degassing process. Import and adopting advanced  technique in big-cubage, reinforced three-dimension flash distillation column,  coalescence and separation technique,  thin film evaporation technique and large area multi-level separation technique and  spraying technique, so as to remove water, gas and light hydrocarbon materials efficiently and quickly from oil.

2. Precise multi stage filtration system. Adopting high-quality filter element and sealing material with corrosion proof, high temperature resistance and excellent mechanical strength, it is suitable even for purification process of high-viscosity oil under rather high temperature conditions and thus expanding its application scope. It greatly helps remove metal and mechanical particulates thoroughly and effectively from oil.

3. Safe and reliable electrical heating system. The electrical heater is installed with vortex tube heating element to keep the temperature even and constant, with the merits of quick heating, inter cycling, auto overload protection, and free preset of temperature range.

4. Advanced auto control system. The equipment is installed with advanced high pressure protection device, float and infrared oil level controller and auto de-foaming system. It can work on line and on site without human supervision. If the fine filter is blocked by impurities and the working pressure increases, the whole machine will stop automatically.

5. Efficient air-cooling and condensation system, It is installed with air cooling radiator to cool down steam, gases and air from the vacuum distillation column. Steam is condensed into water and leads to the water drainage tank. Air and gases is let out to atmosphere.

6. Reliable quality for efficient operation. Major parts of the equipment are of first class quality in the world. Electrical control apparatus are imported from France. Aluminum electrical control cabinet is of high efficiency for heat transfer and anti-explosion.

7. Light and sound alarm system.  The equipment is installed with auto alarming system, it will give out light and sound alarms and stop the whole machine when electrical motor, vacuum pump, oil pump, heater are overloaded and pressure abnormal.

8. Automatic oil purifier series is installed with PLC (programmable logical computer system), which can control the equipment automatically to every stage of its process and ensure its safe operation on site and on line without human supervision.

9. Optional parts. The equipment can also be installed with digital flow meter and timer for auto calculating and recording oil volume and working time. (It’s optional according to user’s requirement)


Advanced separation technique adopted in our machine:

   * Magnetic separation technique     to remove metallic particulates from oil
   * Coalescence separation technique   to remove free water from the oil
   * Vacuum distillation technique      to break emulsion and remove water and light hydro carbon material
   * Verification separation technique   to remove air and gases from oil
   * Pressure filtration technique       to remove solid particulates from oil
   * Liquid film fine filtration technique  to remove micro impurities from oil
   * Absorbing technique              to remove acid, alkali and colloidal materials


Process Description:

The oil is sucked by vacuum into the oil purifier and firstly comes into an electrical heater to a range of adjustable temperature from 40 -- 60°C. Secondly the oil passes through a magnetic coarse filter to get rid of bigger grains of solid particulates. It then comes into a coalescence and separation filter to get rid of moisture. The filter element is made of oil oriented material and only oil can easily get through the filter while the free and dissolved water is condensed and separated on the surface of the element and finally drained out from the bottom of the filter. Then the oil is led to a flash distillation column, where the oil is sprayed and forms into thin film of 0.025mm. In the course of its going down to the bottom of the column, the oil is thoroughly de-emulsified, dehydrated and degasified under vacuum condition in the column. The steam is condensed and drained out, hydrocarbon and gasses are led out by the vacuum pump to the atmosphere. The treated oil is led out after going through another fine filter for further precise filtration.


main paremeter

Maintenance

A. check and adjust after oil purifier works for a period of time
    1. All the electric control apparatus
    2. Temperature controller
    3. Oil seals and motor couplings
    4. Clean filter elements, check pumps and motors
    5. All the pipes for leaking
B. Clean the motor and change the lubricating grease
C. Check and add specified lubricating oil to vacuum pump,
D. If oil purifier is not in use for one month or more, put it on a dry, flat ground, close all valves and electric cabinet, cove the whole machine with canvas.

The result of purified oil and before.

difference


Our office and factory

Our office is Bright and spacious and the factory is clean and tidy, welcome to visit us and have business negotiation here!


Our Products

Wanmei has developed 32 series and 280 different models of products, based on the latest scientific research and advanced technology both in China and abroad. All these products are working properly in different industries of electrical generation, petroleum, chemistry, metallurgy, machinery, mining, aviation, ship-building, railway transportation, etc.


Our Clients

Wanmei has already cooperated with our domestic and overseas customers since 2001. More and more clients select our oil purifier as their products identification. Hope one day your logo can be put here!


Package & Delivery

Normally, we pack our machine with wooden cases. If you have special requirements, please mention that in advance. The main packing method:
Wooden case with waterproofing felt in side for airplane transportation & ocean transport.

deliver


Return&Feedback

We can provide the main component for each marking machine. You can send back the unqualified spare parts to maintenance or replacement the new spare parts for your marker.

After-sales Services

One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.
