• DP Series Bottle Inverse Sterilize Machine

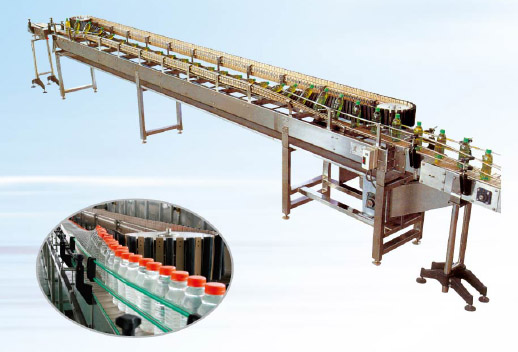

DP Series Bottle Inverse Sterilize Machine

It is mainly used after hot filling fruit juice and tea in PET bottle to sterilize PET bottles mouth and inside surface of caps, which haven’t been disinfected by high temperature. haishiqi12@yeah.net

Product Details

Quick Details

Description

Application:
It is mainly used after hot filling fruit juice and tea in PET bottle to sterilize PET bottles mouth and inside surface of caps, which haven’t been disinfected by high temperature. It mainly consists of chief conveying chain system, support , bottle reversing chain system , bottle reversing guiding rod and bottle repositioning rod. It uses inner thermal medium to disinfect bottle mouth and caps without any other heat source, so it can save energy. The machine is fully made of SUS304stainless steel, elegant in appearance and more convenient in operation.

Capacity(b/h)

Bottle reversing time(s)

Belt speed (m/min)

Motor power

3000-12000

15-20s

4-20m/min

3.8kw

Company Profile

Zhangjiagang Jianwang Food Packing Machinery Co., Ltd. previously named Zhangjiagang Food Packing Machinery Factory, is specializing in researching, designing, developing and manufacturing food packing machineries. We have rich technology as support and take the lead in the designing of new products. We have the ability to produce more than 20 kinds of products of different models, which sell well in more than 20 cities, provinces and autonomous regions in China, at the same time, they are good sale in overseas markets such as Southeast Asia, Middle East and Russia.


Since the year of 1978 when it was set up, we have been producing beverage machineries and meat-packing machineries. In 1994, a new assembly line of producing negative pressure filling machine was set up and in 1996, we were awarded the permit of proportioning device production and passed the approval of proportion. In 1998,we began to produce LRGF automatic washing, filling machine, QTGF series three to five gallon barrel filling assembly line; QP-320 heavy-duty chip sutter, ZGJ series 1050 cubes cutter, etc. AII these machines have taken in the high technology from German, Italy and Japan to show the advanced world technology in the 1990’s. We have won many national patents and our products are improved in our practice. We hope that we can offer more perfect packing for your excellent products.
