• DCS-50K6 Grains packing weigher

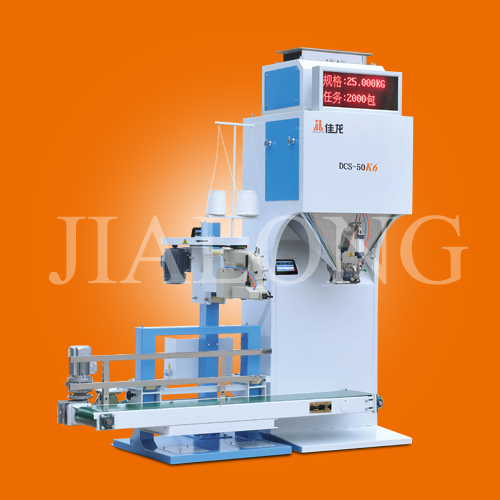

DCS-50K6 Grains packing weigher

Streamline weigher body design,Touch screen control, auto lifting,LED Screen, auto stitching machine,Brake function, intelligent control

Product Details

Quick Details

Description

Model

DCS-50K6( Hopper Capacity:25kg

Packing Rangekgs)

5-25

>25-50

Packing Speedbags/h

600-900

300-400

Accuracy Grade

5-15kg

>15-25kg

0.1% F·S

X0.2

X0.1

Power ,Power consumption

4N-AC 380V 50HZ 1.1KW

Air, air expenditure

0.4-0.6MPa 1m3/h

Installation Height(mm)

2750

Note: Reserve RS232/485 interface

1. Production tasks production planning, events notification could be displayed by LED screen easy on-site management
2. The conveyor height auto lifting, according to different specification, auto lifting and automatic storage memory
3. Weigher Body full sealing design,getting rid of dust, extend the using life of elements.
4. Streamline weigher body design, no exposed wires
5. Weigher inner non-residual design,environment-friendly



Company Profile

Established in the year of 2000, Zhangzhou Jialong electronic LTD, .CO is one of the nation class high tech enterprises and work for the nation class lighted torch plan project. The company is located in the the economic zone on the west side of the Taiwan Straits, Fujian Zhangzhou, which is reputed as “the Hometown of Narcissus”.Jialong specializes in R & D, manufacture, sales and service of self-patterned quantitative packing machine, flow scale, batch-making machine, intelligent vacuum packing machine and automatic control project, our products are widely used in the industry of rice, flour, seed, food, cereal, feed, chemical, and sugar-making, etc.
With strong R&D, design ability and the Sound and efficient R & D Center, Jialong adopt developing” high-tech, high-percession, special and advanced” weighing, packing machine as our guideline. Every year, we develop tens of new products with technical performance and the degree of automation in the leading position. At present, more than ten series of products are on the market and with more than 20 utility model patents and design patents. Our products are listed to the high-tech industrialization demonstration projects by Fujian Provincial Development and Reform Commission and get the financial support from the innovation fund of State Ministry of Science, Provincial Science and Technology Department, Municipal Science and Technology Bureau, respectively.
The R&D and design, material procurement, production process and quality detection, etc. of the company are operated in strict accordance with ISO-9001:2008 International Quality Control System and it has won wide reputation from the users for its high quality products and perfect after-sale services for years. By now our products have been exported to dozens of countries in Southeast Asia, Europe, South America, Central America and Africa.
“Pursuing Excellence and Creating Excellent Products” is the permanent belief of Jialong persons. Nowadays, Jialong is on the way of healthy, quick and sustained development to the future.
