• DCGF series balanced pressure filling 3-in-1 monobloc

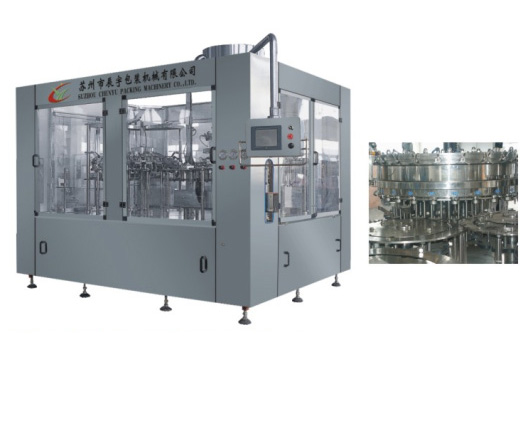

DCGF series balanced pressure filling 3-in-1 monobloc

The series are introduced foreign advanced technology and carried out washing, filling and capping in one machine. yudafu091@yeah.net

Product Details

Quick Details

Description

The series are introduced foreign advanced technology and carried out washing, filling and capping in one machine. The entering bottle adopts air force conveying and hanging-type bottle mouth conveying structure. The whole machine adopts frequency control speed, PLC control .the operation and maintenance are convenient and simple. Its characteristics are steady. It is suitable for PET bottle soda drink equipment.

Model:

DCGF18-18-6

DCGF24-24-8

DCGF32-32-12

DCGF40-40-12

Production Capacity:500ml

5000

8000

12000

16000

Suitable Bottle Standard:

round or square shaped bottle.

Polyester Bottle Standard: (mm)

Bottle Diameter:ф50-ф110   Bottle Height:150-340

Suitable Cap Standard:

Plastic Screw Cap

Filling Precision:

≤±5mm

Filling Pressure:(Mpa)

0.15-0.35

0.15-0.35

0.15-0.35

0.15-0.35

Filling Pressure:(Mpa)

0.2-0.25

0.2-0.25

0.2-0.25

0.2-0.25

Installed Capacity:(kw)

3.5

4

6

8

Overall Size:(mm)

2450×1800×2350

2780×2200×2350

3600×2650×2350

3800×2950×2400

Total Weight: (kg)

3500

4500

5500

6500

Company Profile

Suzhou City Chenyu Packing Machinery Co., Ltd. is a joint venture which is invested by Heifei Zhongchen Light-Industry Machinery Co., Ltd. and Zhangjiagang Dayu Machinery Co., Ltd. It is a professional company specializing in R & D, manufacturing, technical service and sales of beer and beverage packing machinery.

The company has been treat market as its guidance, technology as the its spigot, quality as its main line, after-sales service as the its reliable guarantee. It follows the international quality management system ISO9001: 2000, and established and perfected the quality guarantees systems which ensure the quality and performance of products. It is equipped with perfect testing and inspecting facilities, and it has high-quality technology development team and production experience, all of above ensure the advanced quality and performances of company products.
Among the products, RCGF series, CGF series, DCGF series bottle packing and QGF series barrel packing beverage production lines and QHS series beverage mixer are all designed and made on the base of importing the advanced technology from German, Italy and Japan and its technology keeps the same level as international. Also the company provides technical consultation, factory planning, installing and adjusting technological train and other services.
Now, our products are popular home and abroad, and have been sold to south-east Asia, Russia, Mideast, Africa, South America, and so on, more than 20 countries. Sincerely welcome the presence of friends all over the world.
