• D250 Small lathe

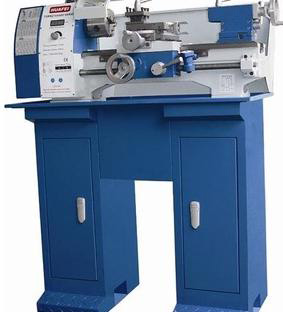

D250 Small lathe

Small-size belt lathe. Turn shaft, plates and taper workpieces. Cutting 32 inch or 18 kinds of metric thread. Widely used. Please contact:wangxun124@163.com

Product Details

Quick Details

Description






Small-size belt lathe.
Turn shaft, plates and taper workpieces.
Cutting 32 inch or 18 kinds of metric thread.
Widely used.

Specification
Model
D250×400
D250×550
  Max. swing over bed
250mm
250mm
  Distance between centers
400mm
550mm
  Spindle bore
21mm
21mm
  Taper of spindle bore
MT3
MT3
  Rang of spindle speeds(6 steps)
125-2500rpm
125-2500rpm
  Taper of tailstock quill
MT2
MT2
  Metric threads can be cut
0.4-3mm
0.4-3mm
  Inch threads can be cut
10-44TP1
10-44TP1
  Motor power
0.6KW
0.6KW
  NW/GW
112/143Kg
115/145Kg
  Package size(L×W×H)
1050×560×580mm
1200×560×580mm


Company Profile

 Chizhou Household Machine Tool Co., Ltd., established in 1958, locates in Chizhou City of Anhui Province. The former name is Guichi Agriculture Machinery Factory, which owns a long history after several evolutions. Our formerly produced products include diesel engines, walking-tractors, agricultural motors and so on. Since 1986, our company has switched to manufacture household combination machine tools - multi-purpose machines for European and American markets, renamed as Anhui Chizhou Household Machine Tool Co., Ltd.

We are specialized in small size machine tools and CNC machines, and are one of the five important enterprises of small-size machine tools, "Provincial High Technological Enterprise", and "National Export Base of Mechanical and Electrical Products", with direct import and export right. We take the quality as life and we establish a scientific and serious quality guarantee system. Our quality system is ISO9001 certified. We gained CE certificate from TUV in 2007 for all of our products.

There are nearly 400 personnel in our company, including 72 technological developing and research persons. We have a technology research team headed by Mr. Xu Xiangtai who is a nationally famous CNC expert, and a provincial technology center was founded by us, too.

Our company is divided into north and south areas. The total area is 150,000 square meters. The workhouse area is 69,000 square meters. The south area, of 90,045 square meters, is located in Industrial Zone of South Part of Chizhou City with standard workhouses and multi-offices of 36,000 square meters. The south area is the center of decision, production, technology development and research, marketing and management of our company and takes on the assembly work of main parts and precisions parts. The north area, of 59,400 square meters, is beside the south part of Yangtze River with the workhouses of 33,000 square meters, and takes on the work of foundry, spare part manufacture, heat treatment and packing.
