  • Cubicle-type substation

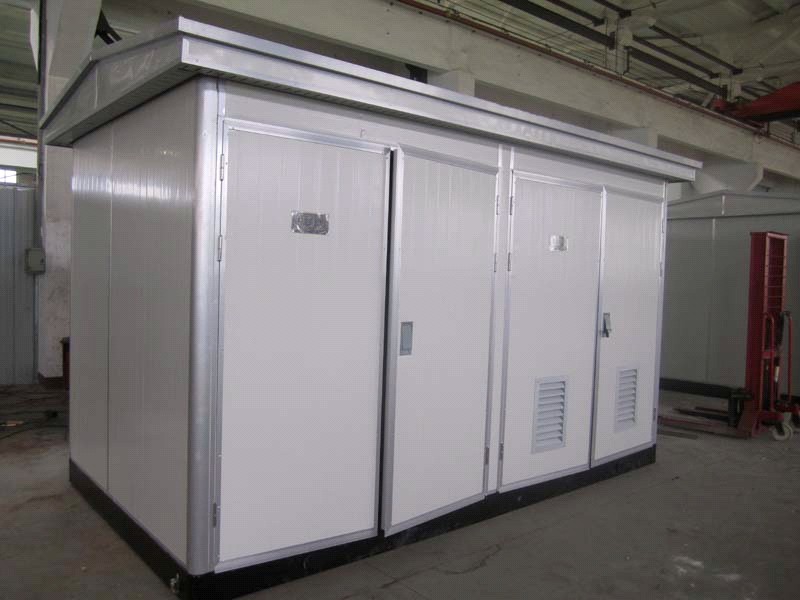

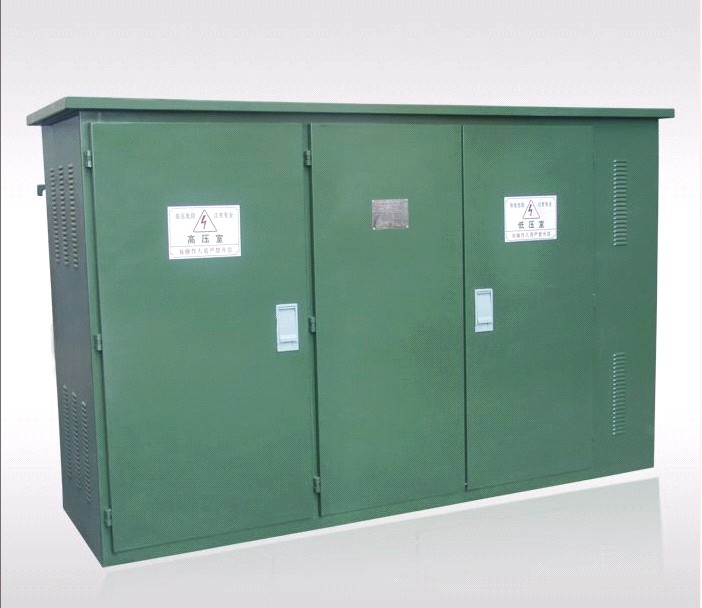

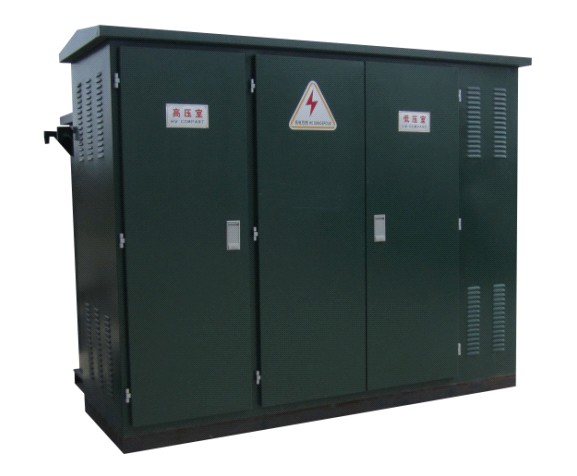

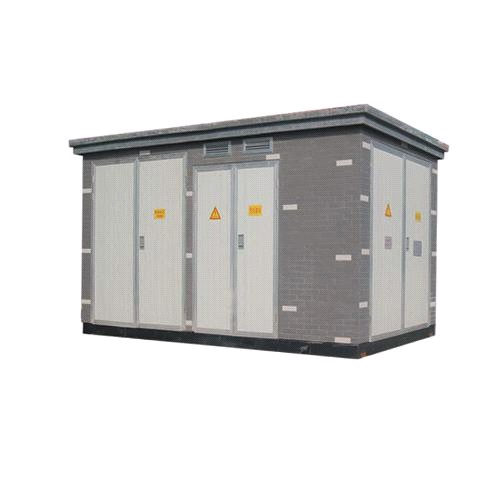

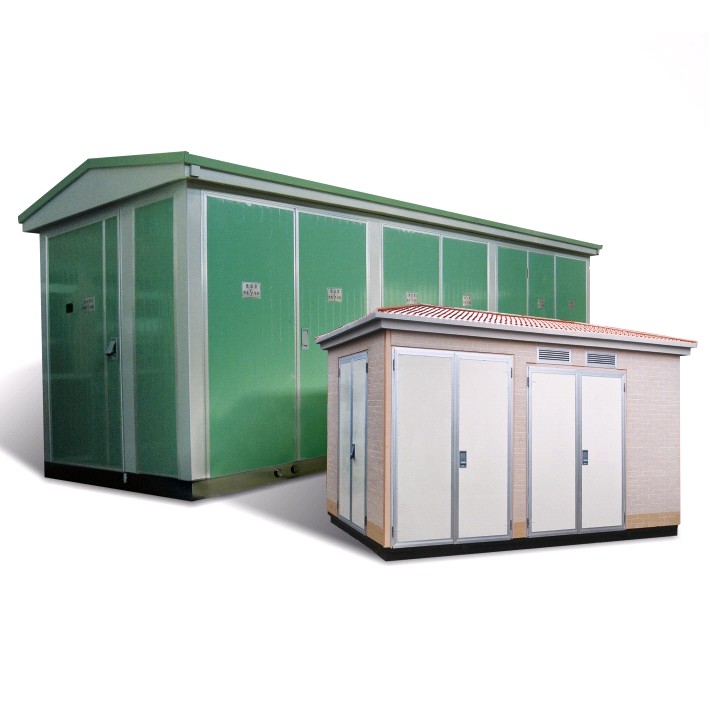

Cubicle-type substation

?the HV chamber is compact in structure and is provided with mis-operation preventive interlocking function. ?it adopts both natural ventilation and forced ventilation to reach good ventilation and cooling effects. The transformer chamber and LV chamber are provided with air ducts. ?the casing body prevents rain water and foreign matters from entrance and it is made of hot-galvanized color steel sheet or anti-rust aluminum alloy sheet and subjected to anti-corrosion treatment. Please contact us! Email:
yuyang@mec.com.cn

Product Details

Quick Details

Description


Skype:snowing1203
MSN:luckywang03@hotmail.com

Its products have following characters: serialization, modularization, multiple functions, complete facility, small volume, light weight and good looking. They meet the requirement of IEC 1330 standard and applicable to city public distribution, street lamp power supply, as well as power consumption in industrial & mineral enterprises, high-rises, residential areas, oil fields, jetty and site construction.
Main Technical Parameters
Item
Unit
H.V. unit
Power transformer
(S11;SG(B);SC(B))
L.V. unit
Load switch
Fuse
Rated voltage
KV
12
12
10/0.4
0.4
Rated power
KVA


1600

Power frequency test voltage
KV/1min
42

35
2.0 2.5
Impulse test voltage
KV
75/85

75
8.0
Rated current(main circuit)
A
630



Short switch current
KA

31.5


Short circuit switch current
KA
50


10-65(1S)
Dynamic current
KA
20



Noise level
dB


28      75

Protect class
Around the cabinet face is IP43,cover and bottom above IP23




·small volume, compact structure, reliable power supply and easy for installation; It can realize single power supply, double power supply, or ring net supply, with double-fuse protection, low running cost.
·the casing surface is treated by electrostatic painting and has good wearing resistance. It is applicable to both ring network and single/double power supply, is convenient for shifting, and can enhance the reliability of power supply.
·the transformer adopts environment-friendly S11 series spiral core, non-excited voltage regulation, full-enclosed type, featuring energy saving and low noise.
·it uses S11 series spiral core transformer, its idle loss is 30%-40% lower than S9, and noise 7-10dB lower than S9.

Configuration
Power
W
H
D
W1
D1
D2
H1
Weight
Standard
Configuration
≤125KV
2000
1580
1116
1180
508
575
1240
2000
160-500KVA
2000
1580
1350
1330
508
655
1340
2950
630KVA
2000
1710
1560
1420
632
775
1480
3400
800KVA
2000
1710
1690
1420
632
775
1480
3600
1000KVA
2000
1710
1820
1420
632
815
1480
4000
1250KVA
2000
1710
1840
1560
632
795
1480
4800
1600KVA
2205
1710
1920
1680
632
920
1520
5700
Extra
Configuration

≤125KVA
2200
1900
1240
1180
632
575
1240
2200
160-500KVA
2200
1900
1474
1330
632
655
1340
3150
630KVA
2200
1900
1560
1420
632
775
1480
3600
800KVA
2200
1900
1690
1420
632
775
1480
3800
1000KVA
2200
1900
1780
1420
632
815
1480
4200
