Common Rail Test Bench BF1178

Real-time controlled by industrial computers, windows operating system

Product Details

Quick Details

Description

1.Real-time controlled by industrial computers, windows operating system
2.The Oil quantity, rail pressure, pulse width, rotate speed, temperature will be displayed by 10.4 inch True color display screens
3.More than 400 kinds of injector data built-in can be inquired
4.The database with a USB interface, easier to upgrade
5.Intelligent PID arithmetic, the rail pressure will be even accurate under the closed-loop control, and with ultrahigh pressure protection function
6.Automatic swithing impulsing power source 12V/24V
7.Adopt two-stage filtration to supply oil, in line with Euro III standards
8.The short-circuit protection feature for the test bench
9.Test oil temperature automatically control, refrigeration axial flow fan / strong refrigeration optional
10.Provided with sensor and measuring cup two kinds of oil measurement, and North Wizard Mice automatic version, oil measurement is more accurate and convenient
11.With the printing feature of the fuel injector test data report
12.Provided with testing common rail pump, special fixture of the injectors
13.Chinese / English language interfaces can be mutual converted (language can be modify)
14.Security protective design, operational safety, simple and convenient
15.Users can customize the rail pressure, pulse width, Quantity oil time and so on
1.The detection range: BOSCH, DENSO, DELPHI, SIEMENS brands Injectors and pumps.etc
2.Detect the performance of common rail pump fuel metering valve
3.Detect the tightness of the common rail pump
4.Detect the performance of the common rail gear pump
5.Detect the performance of the high-pressure oil supply
6.Detect the performance of the rail pressure sensor
7.Detect the performance of the common rail pressure limiting valve
8.Test the tightness of the high-pressure common rail injector and observe its atmospheric effects
9.Measuring the high-speed oil of the common rail injector
10.Measuring the idle speed oil of the common rail fuel injector
11.Measuring the pre-inject oil quantity of the common rail injector
12.Measuring the oil return quantity of the common rail injector
13.The common rail injector can be high pressure washed
14.The injection state and oil measurement of the common rail injector can be set

>>>>>>Technical Parameters:
1.The rated output power: 11KW
2.The main power supply:  380V/50HZ 3-phase
3.The speed of the test bench: 0 ~ 3600 r / min
4.The spindle steering: forward / backward
5.The continuous injection time: 0 ~ 1000 time
6.Rail pressure: 0 ~ 1800 bar
7.Pulse width: 100 ~ 3000μs
8.The test oil filtration rating: less than 5μ
9.Oil temperature: 40 ± 2 ℃
10.Oil tank capacity: 40L
11.The overall size (MM): 1800 × 800 × 1450
12.Weight: 800 kg



Common Rail Test Bench BF1178

Company Profile

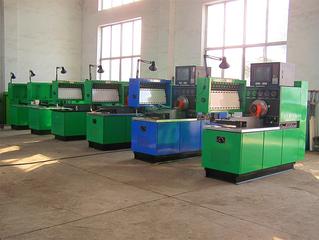

Taian North Test Equipment Factory, located at the feet of the beautiful Mountain Tai, is a professional manufacturer for Diesel Fuel Injection Pump Test Bench, Common Rail System Test Bench, Common Rail Injector Test Bench, VP37 Electronic Controlled Measurement Instruments, REDIV EDC Pump Control Boxes, COVEC-F VE Pump Test Systems, Chongqing H Pump Measurement and Control Instruments, 12PSB series Digital Fuel Injection Pump Test Benches, Nozzle Testers, Diesel/Oil Tank Cleaning Machines and Ultrasonic cleaners, also supply with kinds of numbers common rail parts, repair kits, common rail tools, diesel parts and tools for injectors and pumps.
Our main products brand is "BFCHINA", and Our products are widely used in automobiles, diesel engine, tractors, ships, locomotives, agricultural machinery, air conditioning, generators, air compressors, engineering machinery, teaching and research, defense and other industries. Our products are mainly exported to Europe, Africa, Asian, South America, Latin America, Southeast Asia, Oceania and other countries and regions.
