• Column style (gantry type) Horizontal Metal G4220/G42160/G42150

Column style (gantry type) Horizontal Metal G4220/G42160/G42150

The product uses automatic collection device and PLC control system.As a machine too and lathe, it equips alarm for blade deflection. Contact us:wangyuhua0321@163.com

Product Details

Quick Details Parameter

Feeding Speed: : Stepless Speed Control
Fastening Mode: : Hydraulic

Description

Specifications
Automatic chip collection device.
Saw blade speed: Ordinary speed control or stepless speed control.

Optional:
 Automatic chip collection device.
 PLC control system.
 Saw blade deflection alarm device.
 Cutting feed rote display device.
 Double vice, double beam, gantry position , as required.
  Feeding: Hydraulic table feed or motorized roller feed.
  Saw blade speed: Ordinary speed control or stepless speed control.

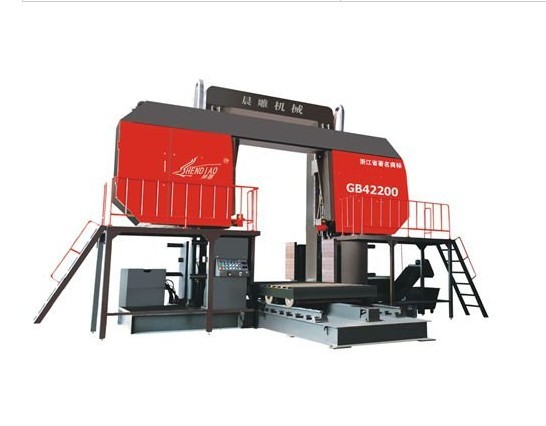

Column style (gantry type) Horizontal Metal Band Sawing Machine

Model

G42200

G42160

G42150

G42120/140

Cutting range

Φ2000 2000*2000

Φ1600 1600*1600

Φ1500 1500*1500

Φ1200 1200*1400

Saw blade size

17238*80*1.6

15440*80*1.6

14440*80*1.6

11750*67*1.6

Linear velocity of saw blade

1555

1555

1860

25.45.65

Total power

30.99

25.12

24.225

14.74

Overall size

7550*6620*5780

6900*4900*4800

6400**4660*4610

5800*2200*3200

Company Profile

Zhejiang Chendiao Machinery Co.,Ltd.,established in 1991, covers the total factory building area of 32,000 square meters.We adopt CAD/CAPP/CAM system for product processing from design to production. We emphasize the technical innovatlon and follow the business strategy of Human-care Essential,Quality First,Sustained Innovation.We have achieved greatlu and successfully developed-generation products that perform at leading level in the market Which achieves remarkable result.
    As one of professional manufacturers of sawing and cutting machinery,we specialize in manufacture of Shendiao brand metal band sawing machines categorized as series of numerical control type,full-automatic type,semi-auto type,horizontal type,vertical type,double-housing type and planer-type,which are noted for high technical value,rational structure,high productivity,energy-saving and stable performance.The machines are widely applied to sawing and cutting nonferrous metal,ferrous metal and nonmetllic materials.
    Facing the fierce market competition,we have srt up a giant sakes service network consisting of sales offices in cities around the country,so as to offer clients with high-efficient and prompt services.thanks to the perfect after-sales services,our products have been winning the great acceptance by user.which sell well on domestic market and have been exported to countries in southeast Asian area.
     We are in a position to design and maunfacture extra large size or special-purpose sawing machines according
     Chendiao,backing your business up all the way.

Zhejiang Chendiao Machinery Co.,Ltd.
