• Column style (gantry type) Horizontal Metal Band Sawing Mchine G42130/G42120/G42100/G4285

Column style (gantry type) Horizontal Metal Band Sawing Mchine G42130/G42120/G42100/G4285

The product uses hydratulic to blade tension as one kind of metal band sawing machine. Its material feeding adopts machanical auto. Contact us:wangyuhua0321@163.com

Product Details

Quick Details Parameter

Feeding Speed: : Stepless Speed Control
Fastening Mode: : Hydraulic

Description

Main features:
Ideal equipment for heavy-duty cutting.
Blade tension:hydraulic.
Material feeding:machnical auto.
Rail Guide:Imported linear guide.
Main driving:use Germany technology spiral bevel gear speed reducer.
Cutting feed:gantry structure with rail guide,double cylinder control the machine beam run along the guide,realize cutting feed stepless speed control.
Stable in structure.narrow in saw kerf,precise,economical and high-efficiency.

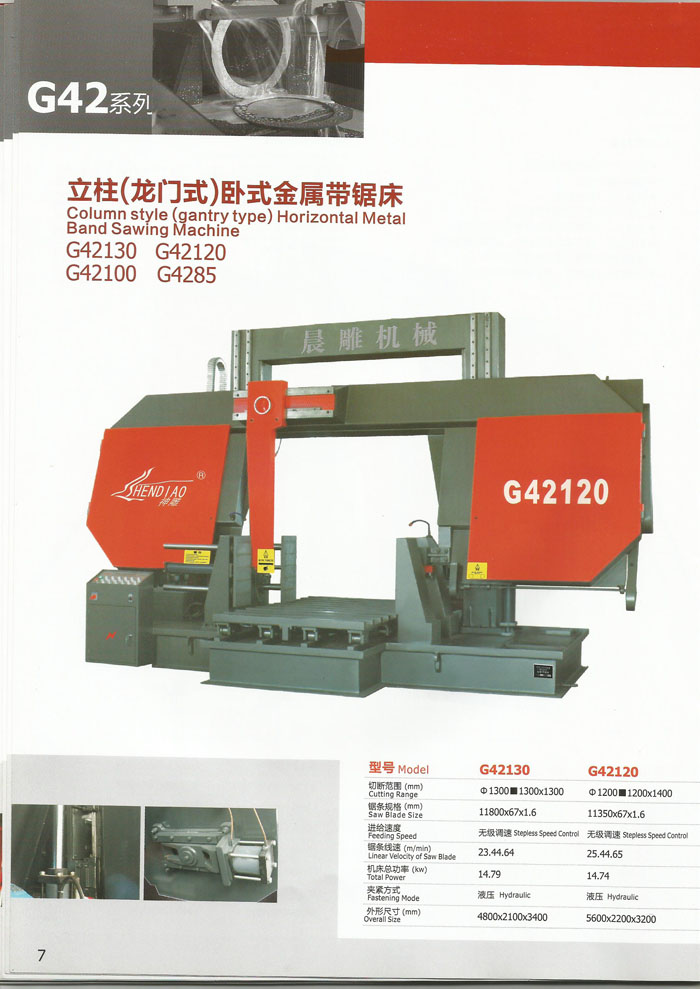

Column style (gantry type) Horizontal Metal Band Sawing Mchine G42120

Model

G42130

G42120

G42100/120

G42100

G4285/100

G4285

G4275

Cutting range

Φ1300 1300*1300

Φ1200 1200*1400

Φ1000 1000*1200

Φ1000 1000*1000

Φ850 850*1000

Φ850 850*850

Φ750 750*800

Saw blade size

11800*67*1.6

11350*67*1.6

102100*67*1.6

9840*67*1.6

8780*67*1.6

8480*6781.6

7430*54*1.3

Linear velocity of saw blade

23.44.64

25.44.65

22.44.68

22.44.68

22.44.68

22.44.68

24.48.68

Total power

14.79

14.74

14.74

14.74

11.24

11.24

9.24

Overall size

4800*2100*3400

5600*2200*3200

4600*1900*3200

4400*1900*3200

4200*1900*3000

3900*1900*2900

3460*1660*2400

Company Profile

Zhejiang Chendiao Machinery Co.,Ltd.,established in 1991, covers the total factory building area of 32,000 square meters.We adopt CAD/CAPP/CAM system for product processing from design to production. We emphasize the technical innovatlon and follow the business strategy of Human-care Essential,Quality First,Sustained Innovation.We have achieved greatlu and successfully developed-generation products that perform at leading level in the market Which achieves remarkable result.
    As one of professional manufacturers of sawing and cutting machinery,we specialize in manufacture of Shendiao brand metal band sawing machines categorized as series of numerical control type,full-automatic type,semi-auto type,horizontal type,vertical type,double-housing type and planer-type,which are noted for high technical value,rational structure,high productivity,energy-saving and stable performance.The machines are widely applied to sawing and cutting nonferrous metal,ferrous metal and nonmetllic materials.
    Facing the fierce market competition,we have srt up a giant sakes service network consisting of sales offices in cities around the country,so as to offer clients with high-efficient and prompt services.thanks to the perfect after-sales services,our products have been winning the great acceptance by user.which sell well on domestic market and have been exported to countries in southeast Asian area.
     We are in a position to design and maunfacture extra large size or special-purpose sawing machines according
     Chendiao,backing your business up all the way.
