• Coalescence Vacuum Deodorization Oil Filtration Machines

Coalescence Vacuum Deodorization Oil Filtration Machines

1) Vacuum Oil Purifier 2) Coalescence and separation 3) Flash Distillation 4) For turbine oil 5) ISO9001&TUV Rheinland

Product Details

Quick Details Parameter

Condition: : New
Flow: : 300L/MIN
Working Pressure: : less than 0.5MPA
Place of Origin: : Chongqing, China
Brand Name: : WANMEI
Model Number: : JZJ-300
Usage: : TURBINE OIL
Voltage: : 380V
Power(W): : 177000
Dimension(L*W*H): : 185*145*180CM
Weight: : 1450KGS
Certification: : ISO9001
After-sales Service Provided: : Engineers available to service machinery overseas
Certificate: : TUV Rheinland
Brand: : OEM available
Warranty: : One year
Color: : Optional

Description

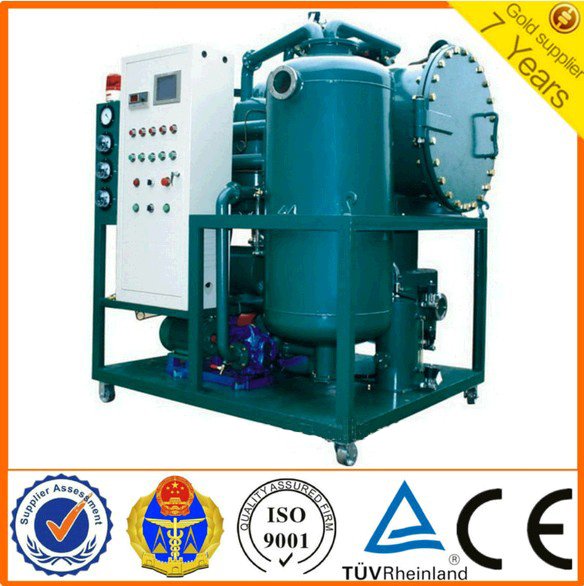

Coalescence Vacuum Deodorization Oil Filtration Machines

JZJ Series Coalescence Vacuum deodorization oil filtration machines

General Description:

JZJ series coalescence vacuum oil purifier is the set production of electric power department. The machine uses the updated technology and gathers the advantages of gravity subside, coacervation, vacuum separation, absorption, centrifugal separation, pressure filtering. It has the strong ability of breaking emulsion, dewatering, degassing and removing impurity. It is the ideal equipment to deal with steam turbine oil, low viscosity lubricating oil and hydraulic oil on the production line.  Application:
It can be commonly adopted for on-line turbine oil filtration in aspects of electric power, metallurgy, chemical engineering etc. It can implement emulsion breaking, dehydration and remove water, soap, gelatine, acid, pigment and metal particulate in emulsive turbine oil and low-viscosity lubricating oil as well as filtration of steam turbine oil used in other machinery and electric power equipment or hydraulic oil based on steam turibine oil.

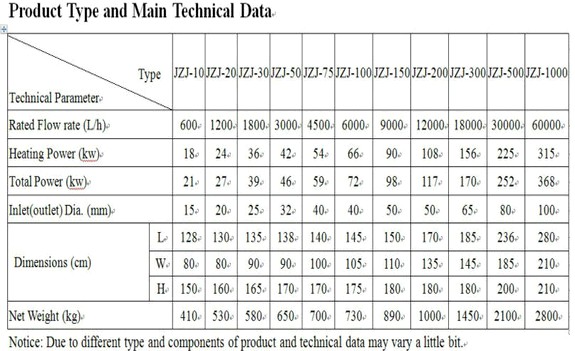

parameter


Coalescence Vacuum Deodorization Oil Filtration Machines

Coalescence Vacuum Deodorization Oil Filtration Machines


Characteristic:

1. It has super dewatering function. It can do dewatering with high water proportion oil with high efficiency and less energy consuming.

2. It used the coacervation and separating technology and three-dimensional flash vaporization technology, and it has strong ability to break emulsion and remove water.

3. Optimized electric heating automatic controlling system with constant temperature ensures the oil temperature for average and stable heating.

4. Precise multi-stage filtration system that can remove different kinds of impurity. High quality filtering material with high ability of containing pollution can be used longer.

5. Advanced infrared liquid level control system and pressure protection device make the operation simple and safe.

6. It can purify any turbine oil used in steam turbine and water turbine online.

7. The condensation technology for the flash vaporized mixed gas to strengthen the effective output power and extend the service life of vacuum pump, avoiding the inconvenience of cooling circulating water.

8. The machine can also use flow meter and hour meter which allow customers calculate the amount of the outputting oil and working time (the user and can choose).

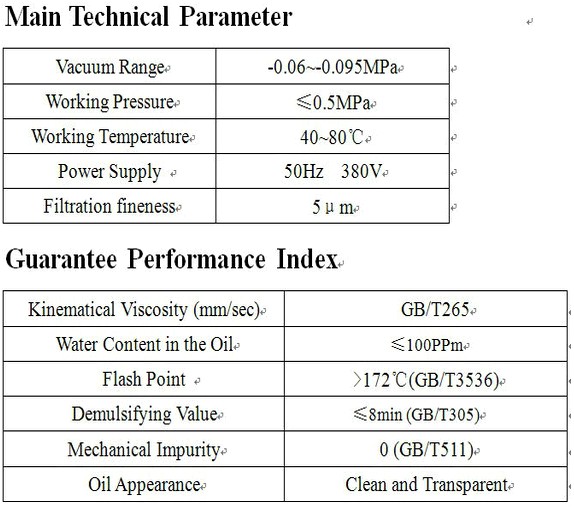

main parameter

Maintenance

A. check and adjust after oil purifier works for a period of time
1. all the electric control apparatus
2. temperature controller
3. oil seals and motor couplings
4. clean filter elements, check pumps and motors
5. all the pipes for leaking
B. Clean the motor and change the lubricating grease
C. Check and add specified lubricating oil to vacuum pump,
D. If oil purifier is not in use for one month or more, put it on a dry, flat ground, close all valves and electric cabinet, cove the whole machine with canvas.

The result of purified oil and before.

difference


Our office and factory

Our office is Bright and spacious and the factory is clean and tidy, welcome to visit us and have business negotiation here!


Our Products

Wanmei has developed 32 series and 280 different models of products, based on the latest scientific research and advanced technology both in China and abroad. All these products are working properly in different industries of electrical generation, petroleum, chemistry, metallurgy, machinery, mining, aviation, ship-building, railway transportation, etc.


Our Clients

Wanmei has already cooperated with our domestic and overseas customers since 2001. More and more clients select our oil purifier as their products identification. Hope one day your logo can be put here!


Package & Delivery

Normally, we pack our machine with wooden cases. If you have special requirements, please mention that in advance. The main packing method:
Wooden case with waterproofing felt in side for airplane transportation & ocean transport.

deliver


Return & Feedback

We can provide the main component for each marking machine. You can send back the unqualified spare parts to maintenance or replacement the new spare parts for your marker.

After-sales Services

One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
