  • Circular Shear

Circular Shear

Circular Shear is a type of special equipment for the rounding of insulation cardboards. Please contact us! Email:
yuyang@mec.com.cn

Product Details

Quick Details

Description

Email:yuyang@mec.com.cn
Skype:snowing1203
MSN:luckywang03@hotmail.com

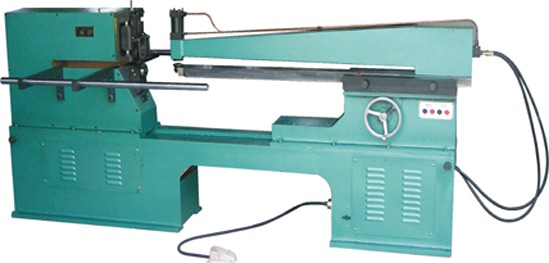

YJ Circular Shear is a type of special equipment for the rounding of insulation cardboards. The machine is novel in design and small in sized. The movements of pressing, releasing and blade lifting is controlled by hydraulic system. Electric roll shearing is applied which gives the machine higher automation level. Lower noise, smooth in operation, precise in shearing and big in rounding diameter, the machine serves as the ideal equipment for the rounding process of insulation cardboards.

Main Technical Parameters
Item
Parameters

Shearing Diameter
φ140~φ1400mm

Raw material Thickness
0.5∼4mm

Shearing Precision
±1mm

Shearing Speed
≤9.5m/min

Machine Weight
900kg

Total power of Motors
2.5Kw

Overall Dimensions
1900×670×1160(mm)



123

Company Profile

We are a professional player in transformer industry,  our annual total production capacity is about 18,000,000 KVA, our factory covers an area of 370,000 square meters and a building area of 100,000 square meters, with total assets of 350 million CNY and more than 1000 staff members with engineering and technical employees accounting for 21%.
Our main products include 220kV and below&200MVA and below oil immersed power transformers, 110kV and below furnace transformers, 110kV and below rectifier transformers, 35kV dry type transformers, 35kV combined transformer substation, 35kV and below amorphous alloy transformer, 35kV and below reactor etc. All of our products' performance measures up to the standards established by International Electric Committee (IEC).
We have many advanced production and testing facilities which imported from Germany and Japan, such as silicon sheet shearing automatic lines, automatic and continuous extrusion lines of electromagnetic wires, Kerosene vapor vacuum drying systems and more than 1,500 sets of production and complete testing systems for professional transformer production and other testing equipment. We can meet the requirements of customers completely.
 We have obtained ISO9001 quality management system and ISO14001 environmental management system certifications and in strict accordance with these standards in our routine.
We also obtained the CE certificate, CTQC test report, Nation Standardization Management AAA Certificate, National Measuring System Certificate and others. Many prizes also have been awarded to us in the past years by the relevant national Authority and local government.
Owing to our good reputation on quality and service, our products have been exported to more than 20 overseas countries and regions.
We sincerely hope we can provide you with best products and satisfied service, and you are always warmly welcome to visit us.
