  • China paper cup making machine

China paper cup making machine

China paper cup making machine 2.5-12OZ paper cups cold drink cup and hot drink cup high quality Please contact me:naijiaxin11@yeah.net

Product Details

Quick Details

Description

1.Description:

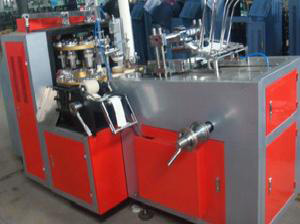

high speed DB-L12 paper cup making machine is multistation automatic machine. It has continuous automatic procedures like feeding, sealing,
oil filling, washing, heating, knurling, convex knurling, curling, unloading, etc. It is ideal equipment for producing paper testing-drinking cups, market cups, advertising cups, etc. It is widely used for hot drink and some beverage.


2.DB-L12 paper cup making machine feature:

1).For main running chain , our machines has three range running chains
2).Between the three main turn-plates running , we use gear running instead of chain
3).The turn-plate we choose aluminum material, it is not heavy, can reduce the wear rate of the machine.
4).We use aluminum material for heaters once the machine stop unormal , the cup in side  can not burning


3.Main Technical Parameter:
Model
DB-L12 PAPER CUP MACHINE
Cup size
A: Top outside diameter: 50~90mm
B: Height :45~115mm
C: Bottom outside diameter:35~64mm
D: Depth of Cup bottom: 4.5~12mm


Applicable Paper
150-250gsm  (one side PE coated paper)
150~380gsm  (two side PE coated paper)
Production speed
45-55pcs/min
Electrical requirement
Without ultrasonic:3.8KW  380V  50Hz
With ultrasonic:   8 KW  380V   50HZ
Compressed air
0.4m3/min ,Air source request (double PE): 0.4-0.6 Mpa
Weight
1300 KG
Overall dimensions
(L*W*H ) 2.55*1..26*1.7 M


Company Profile

new debao machinery company is established in2001 year ,it is special in making paper containers forming machinery and other matched equipment. Our paper containers products is widely used in KFC, McDonald's, Starbucks , DICOS etc famous food company
New debao company is local in china machinery city-- wen zhou rui an city , there are 160 workers here, and every month we can finish 90sets cup machines , our machine can make from 2.5oz small coffee cups to KFC family bucket through moulds changed , the delivery time around 30days , also,according to customer special cup sample,the machine can be custom-order .
New debao company have stronger design team and stronger technical power ,our machinery products have 21 patents for utility models and 1 invention patent ,and we pass through ISO9001:2000 quality system , and haveCE certificate ,SGS certificate for machinery products
The main electrical parts we use japan omron, French Schneider, Switzerland leister etc import brand ,And the machinery bearing we use japan, NSK brand ,Before export , the finished machine should be running at least 24 hours , and we use the inspect device to inspect the cups , the rate of finished products can up to 99.99%
Our main products include low speed and high speed paper cup machine , paper bowl machine ,double wall paper cup machine and die cutting machine etc
