CY501A Tensile Strength Tester

CY501A tensile strength tester is designed adopting modern mechanical design concept and human body engineering design criterion with advanced microcomputer processing technology .It has a novel design, excellent performance, and beautiful appearance.

Product Details

Quick Details

Description



Feature

1, with high precision, full digital speed regulation system and precision reducer, drive precision ball screw pair to test and implement a wide range of regulation test speed, low noise, smooth operation test process.

2,universal joint cross bolt structure, and has the function of swing Angle limit, on the one hand is advantageous for the specimen clamping, guarantee the test concentricity, on the other hand good to eliminate the influence of irregular sample of sensor.

3, the LCD real-time display.Display interface can choose interface according to test method, test parameter selection interface, test operation and the results show

that the interface and curve display interface, convenient and quick.

4, can implement sample clamping beam speed rise or adjustment, has over current, over voltage, overload protection device, etc.

5, equipped with microcomputer interface, test process can be an external microcomputer control and data storage and print.



Application

It is applicable in testing the tensile property of plastic films, complex films, flexible packaging materials, adhesives, adhesive tapes, glue, rubber, Paper, plastic, aluminum plate, enameled wire, non-woven fabric, textiles, waterproof materials, triangle etc.

Add grip, we can make the compression and bending test.

Function: Digital display, test speed can continuously adjustable; when the specimen snapped, it can automatic stop ,peak holding etc



Standard

This machine is designed and manufactured according to GB/T 12914-1991, and its every capability conforms to relative test standards such as GB 13022-91、 GB/T1040-92、GB2792-81、GB/T 14344-9、GB/T 2191-95、QB/T 2171-95,etc



Parameter

        test range :100N,200N,500N,1000N,2000N,5000N(optional)

        accuracy: 1 grade

        force Resolution:0.1N

        deformation resolution:0.001mm

        test speed:1mm/min-500mm/min

        specimen clamping:manual

        route :600mm (customizable)

        deformation indication error :≤±(50+0.15L)

        dimension:540mm(L)×280mm(W)×1700mm(H)

        motor power:750w

        power:220V,50Hz

       weight about 200kgs

        work enviroment: room temperature 10-35℃, relative humidity not greater than 80%






CY501A Tensile Strength Tester

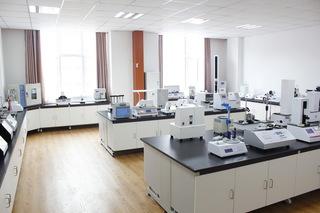

Company Profile
