  • CNC water jet cutting equipment with different size cutting table and HP pump

CNC water jet cutting equipment with different size cutting table and HP pump

Water jet cutting equipment 1. High pressure 2. Low cost and good service 3. Long useful time spare parts E-mail: zhuxiaochen124@126.com

Product Details

Quick Details Parameter

Place of Origin: : Liaoning, China (Mainland)
Model Number: : HEAD-A380/300/420
Color: : white and orange
Material: : steel
control way: : CNC
speed: : 800-1000mm/min
pressure: : 380/300/420mpa
control accuracy: : 0.01
cutting accuracy: : 0.1-0.2
re position accuracy: : 0.05
drive way: : AC servo
power supply: : 380v/50hz, 37kw/18.5kw

Description

 E-mail: zhuxiaochen124@126.com


CNC  water jet  cutting equipment Technology

Tap water is impressed to 200-400Mpa by UHP Intensifier, and then a waterjet with high speed of 800-1000m/s is made through a small gem nozzle with bore size of 0.1-0.35mm. This waterjet has high energy and it can cut soft materials such as paper, rubber, sponge, etc. Furthermore, if mixed proper quantity abrasive, it can cut all kinds of soft and hard materials such as glass, marble, ceramics, stainless steel, etc

The CNC water jet  cutting equipment includes three main parts,the following is main charactors:

1. Cutting table: a.bridge style,Pretty outline, rational structure, good rigidity ,stability

                              b.separated body between cutting table and platform,

                              c.X beam of cutting table applies the one-off extrusion forming aluminum alloy,

                              d.Cancelling dustproof cloth on X, Y, Z axis and hiding Y axis towline

                              e. flexible coupling of motor and ball screw, high qualiy ABBA ball screw and linear guide,

                               f. The cutting head is with casting structure and concrete structure.

                               Models of cutting table we can offer:

HD1525B

HD2030B

HD2040B

HD3020B

HD2060B

1500mm×2500mm

2000mm×3000mm

2000mm×4000mm

3000mm×2000mm

2000mm×6000mm

2. Intensifier pump: a. intenfier pump  is developed by ourselves for 300Mpa pump,we also import from IWP America for 380Mpa pump.

                                      b. Electronic Direction Regulation

                                      c. 7-inch Touch Screen, Man-machine Interface Indicate Working Conditions error

                                      d. Maximum Flow of Hydraulic Pump: 90L/min

                                      e. Maximum Discharge Capacity: 3.7L/min

                                       f. Integrated heat exchanger, high heat exchange ratio and good effect

                                       g.Two-step up water supply

                                       h. Few wear parts in the intensifier,save the cost

3. CNC controller: a.19inch LCD

                                  b. Support DXF file ,can use AUTOCAD to produce DXF file

                                  c. use IPC and the professional software based on windows XP

                                  d. use Omron PLC instead of relay

4. Other accessories: auto abrasive system,on/off valve and hp tubing

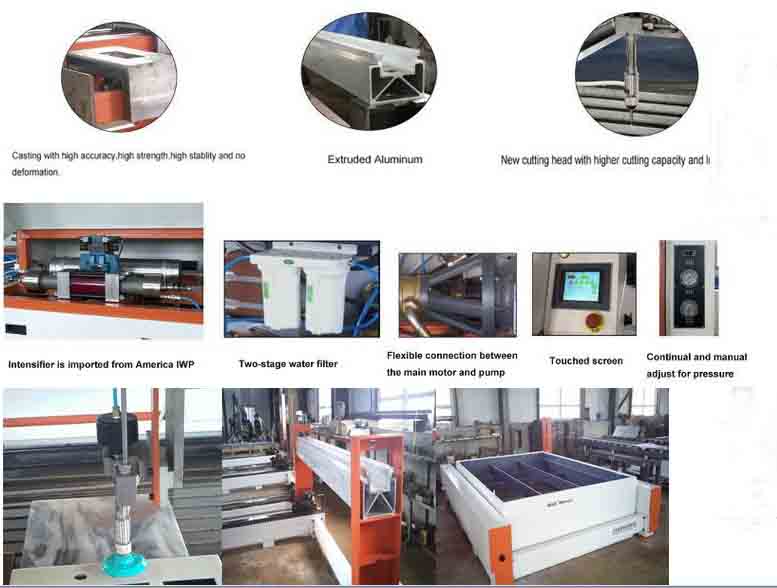

5. Detail advantages of the water jet cutting equipment:



waterjet 1

Company Profile

 Shenyang Head Science & Technology Corporation is an experienced manufacturer of water jet cutting machine, covering more than 20,000 square meters. We are specialized in designing, researching and developing, manufacturing ultra high pressure (UHP) waterjet cutting systems and relative parts. We have more than 20 series of self-developed designs and molds. With more than ten years of development, we have become a top-ranking enterprise with two subsidiaries. Our "HEAD" brand Waterjet cutting machines have been recognized internationally. We can also work on your OEM/ODM projects by operating our in-house facilities. Our experienced engineers are adept at using 3D software, enabling us to meet your customized requirements. With an annual production capacity of more than 100 sets, we can fill your bulk orders with ease.

Our craftsmanship has been in international leading level. We have introduced laser interferometer and have more than 10 QC members to carry out strict inspection at each stage: incoming inspection (IQC), in-process inspection (IPQC) and final inspection (FQC). We have spread our market into North America, Australia, Southeast Asia, Central Asia and the Middle East. With our rich experience and considerate services, we have been recognized as a reliable supplier by many international buyers.

As Concentrated, So Professional!

"First quality, high efficiency, considerate service" is our consistent business principle. Welcome you to contact us freely and visit our factory. We sincerely hope to create and share success with all clients.
