CNC single column vertical turning lathe machine CK5112

1.60 years experience
2.own casting foundry
3.whole life after-sale service
4.hand scraping for high

Product Details

Quick Details Parameter

Place of Origin : Liaoning, China
Type : Vertical
CNC or Not : CNC
Max. Swing Diameter : 1250mm
Voltage : 380V
Weight : 8.5t

Description


CNC single column vertical turning lathe machine CK5112

1.Usage range

 a. Turning the internal and external cylindrical surface and plane

 b. Turning internal and external conical surface

 c. Grooving

 d. Head face

 e. Severance



2.Advantage

 a.high quality casting iron

 b. high accuracy double-row short cylindrical roller bearings

 c.manual fine scraping(high precision)

 d.Working table adopts hydrostatic guide way.

 e.the spimdle adopts zwz which got wear resistant

 f.gear was made by quenching way which got little noise



3.Main specification and parameters

No. Name Unit CK5112
1 Max. turning diameter mm 1250
2 Table diameter mm 1000
3 Max.height of workpiece mm 1000
4 Max.weight of workpiece T 3
5 Range of table rotate speed r/min 6.3-200
6 Grade of table rotate speed grade 16
7 Feeding range of tool post mm/min 0.8-86
8 Max. cutting force of tool post KN 20
9 Max.torque KN.m 17.5
10 Horizontal travel of tool post mm 700
11 Vertical travel of tool post mm 650
12 Beam travel mm 650
13 Swing angle limit of tool post degree ±30°
14 Fast moving speed of tool post mm/min 1800
15 Beam lifting speed mm/min 660
16 Main motor power KW 22
17 Overall size of machine(L×W×H) mm 2460*2330*3430
18 Machine weight T 8.5





 4.Charactors:

a. The framework is scrapped by hand which has high geometric accuracy. In order to increase the lubrication oil

 reserve and decrease the friction coefficient.

b. The spindle adopts the world famous brand "ZWZ" with high accuracy double-row short cylindrical roller

bearing take the effect of centering in the process of running or rotating, because radial clearance of bearing

 is adjustable; the worktable has higher rotation accuracy.

c. The cutter head device is composed of cutter head slide base and ram. The ram prefer the ductile iron

 because of its ability to with stand shock loads, high tensile strength, and abrasive resistance.

d. All gears in adopt harden and grinding processing and have the advantages of stable drive, low noise.

The gears adopt 20 CrMnTi through hardening and grounding.

e. After the process of anneal and turning. The guide rail and worktable scrapped by hand sealed by oil slick

to make sure that they can run steadily.



Company Profile

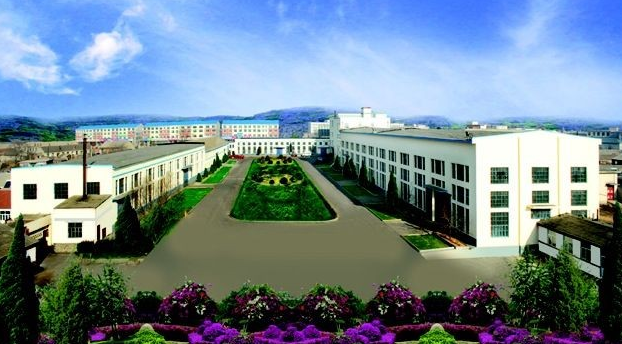

Dalian Wagong Heavy-duty Machine Tool Manufacturing Co., Ltd., a key enterprise of Dalian equipment manufacturing industry, manufactures common, CNC and single/double-column vertical lathes. We boast powerful manufacturing capacity, advanced testing means and strict quality assurance systems. We have been honored as “Dalian Credit AAA Enterprise” Our products are inspected as qualified products by Dalian Institute of Product Quality Supervision & Inspection (JB/T3665.3-2006). Our vertical lathes are chosen to process turbine generator parts for Dongfang Turbine Co., Ltd. and aircraft parts for AVIC Xi’an Aero-Engine Group Ltd.

In the business philosophy of “Credit & Faith”, we win customers with high-quality products and zero-distance after services. Our equipment features small investment, high efficiency, high precision, zero failure and great assurance.
