  • CNC lathe low fault

CNC lathe low fault

The CNC lathe havs hgih accurate ,big rigidity,control easily,low fault. Please contact:yudafu091@yeah.net

Product Details

Quick Details

Description

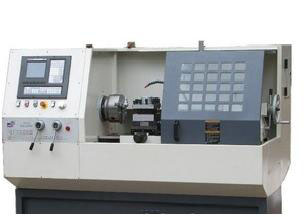

CNC lathe
TYPE

CK6132D    I    CK6140D

Capacity
Max swing over bed      mm
340    I    400
Max swing over carriage   mm
180    I    240
Distance between centers  mm
750, 1000
Max turning dia       mm
180    I    220
Max turning length     mm
600, 850

Travel
X axis travel    mm
175
              Z axis travel     mm
650,900

Spindle
Spindle speed()     rpm
38~2000
Spindle nose       ISO
ISO702/ NO6
Spindle bore(dia)      mm
Φ52
Spindle bearing(dia)   mm
Φ95

Turret
Number of tools
4/6/8
Indexing time     SEC
2.4
Tool shank size    mm
20*20     I    25*25
Boring bar dia    mm
Φ32

Feed
Rapid traverse of X axis  mm/min
4800
Rapid traverse of Z axis  mm/min
6000



Tailstock
Max travel     mm
600,850
Quill dia        mm
Φ60
Quill travel     mm
130
Quill taper
                MT-4

Motor
Spindle motor    kw
3/4      I   4/5.5
X axis motor , Z axis motor
6        I     7.5


Company Profile

 We can manufacture various machine tools, such as universal lathes, CNC lathes, vertical drilling machines and machining center.

Our company was established in 1985 with fixed assets exceeding RMB300 million. Our company has independent import and export rights authorized by the State Foreign Economic Trade Committee. Our products are exported to over sixty countries and regions around the five continents. Our products had been given the golden praise of "Mexico-Chinese Practical Economic and Product Trade Exhibition" and the "19th International Golden Star for Excellence in Corporate Appearance and Quality Award".

We are devoted to the innovation of technology and management, and have formed strict, practical and continuously innovative business culture. With the approval of technology committee, our company established a R&D center, which organizes the planning, development and innovation of multiple products, and has developed seven series, over twenty types and over sixty grades of products. The advantages of our CNC lathes are advanced structures, novel types, high quality, high performance and low prices.

Our company was awarded the honors of "Star Company in China" and "Attaching Importance to the Contract, Keeping the Prestige" and our products were awarded titles of "High Quality Products in Guangdong Province" and "Famous Brand Products in Guangzhou City".
