• CNC Vertical lathe

CNC Vertical lathe

1.max.machining dia.:450mm/600mm 2. 8-position hydraulic turret 3.Workpiece surface roughness:Ra1.25 4.Taiwan Controller Please contact:zhuxiaochen124@126.com

Product Details

Quick Details

Description

Technical Parameter

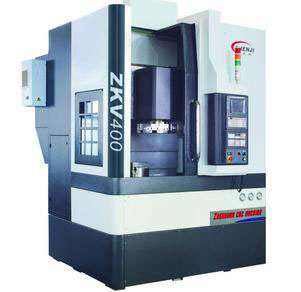

ZKV400 CNC Vertical Lathe
ZKV600 CNC Vertical Lathe
Max.machining diameter
φ450mm
φ600mm
Chuck diameter
12"(φ305mm)
15"/18"(option)
Max.swing diameter
φ550mm
φ750mm
Spindle end type
A2-8
A2-11
Spindle speed
50-2500r/min
50-2000r/min
Motor power
15KW /18KW (option)
22KW
Rapid travel speed of X axis
15m/min
12m/min
Rapid travel speed of Z axis
18m/min
16m/min
X axis positioning accuracy
0.015mm
0.015mm
Z axis positioning accuracy
0.015mm
0.015mm
X axis repeat positioning accuracy
0.005mm
0.005mm
Z axis repeat positioning accuracy
0.008mm
0.008mm
Max.stroke of X axis
(+300mm-50mm)
(+430mm-50mm)
Max.stroke of Z axis
450mm
600mm
Turret
8-position hydraulic turret
8-position hydraulic turret
Machining accuracy
It6
It6
Workpiece surface roughness
Ra1.25μm
Ra1.25μm
Overall dimension (LXWXH)
1850x1700x2650mm
2500x2000x3300mm
Weight(about)
6300kg
11500kg


Company Profile


It is a modern high-tech enterprise with not only scientific R&D (Research and Development), but also production-manufacturing, distribution and after-sales service. The company has been awarded the honor of "Zhejiang SME," "High-tech Industry," "Top Ten Industry in Yuhuan," "Top 50 CNC Machine Tool Manufacture in China" and "Taizhou Great Brand."
Z-MaT makes efforts to achieve leaps in the development plans by cooperating with the famous tertiary institutions and universities. The company collaborates with a high performance team of many honest-spirited senior professionals to engage in the technical developments of engineering. Focuses on product development, key technology research, manufacturing, product assembly, debugging and testing. Advanced production management concepts create a new industrial base within modern R&D and manufacturing.
In pursuit of quality and reputation, Z-MaT has introduced precision gantry grinders, machining centers, roundness measuring equipments, laser interferometers, dynamic balancing instruments and other advanced manufacturing equipment and measuring instruments. These equipments help Z-MaT continue to pursue excellence, create first-class brands, and provide customers with high-quality "Z-MaT" machines.
After many years of innovation and R&D, Z-MaT currently has more than 40 series of CNC machine tools, such as: CJK, CK, CXK, CNC, ZXK, ZYK, VMC, etc. Meanwhile, various special machines can also be customized or designed according to the customers' needs. Its sales network is all over the world, and the company enjoys the right to import and export trade to serve the world. Z-MaT people are always insistent on the marketing policy of "Being honest and sincere".
In the future, Z-MaT will continue to focus its concentration on technological innovations and the development of new products. The best service and technology will be provided for both international and domestic customers. We sincerely expect to cooperate with you!
