  • CNC Pipe Threading Lathe-QK1335B

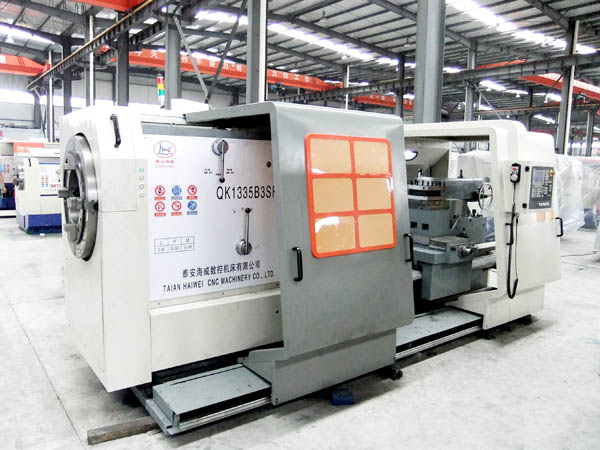

CNC Pipe Threading Lathe-QK1335B

1, CE Certificare 2, use the NSK bearing and SIMENS controller 3, Schneider breaker 4, Quality change the world Please contact us:zhangmimin122@126.com

Product Details

Quick Details

Description

The usual brand-name accessories:
  1) precision bearing NSK, imported from Japan;
  2) auto centralized lubricating system, imported from Japan;
  3) gears in spindle box are all high-frequency quenched and ground;
  4) high-torque spindle motor of German techniques;
  5) domestic brand-name electric tool post;
  6) domestic brand-name encoder;
  7) domestic brand-name ball-screw;
  8) low-voltage apparatus of Siemens and France Schneider;
  9) domestic brand-name chucks and accessories.
 10)NVC lighting lamp pipe

Optional NC system of famous brand:
 1) Siemens 802C servo
 2) Siemens 802DSL servo
 3) Japan FANUC 0i-mate-TD servo
 4)Guangzhou NC GSK980TDb servo


CNC pipe threading lathe
Three gears    Automatic gear shifting

technical parameters

QK1335B

max. swing over bed (mm)

1250

Width of the bed(mm)

755

spindle bore diameter (mm)

350

tube outside diameter (mm)

100~340

center distance (mm)

1500

max. swing over crossslide (mm)

820

spindle taper

352/1:50

automatic spindle speed (r/min)

6~190

main motor power (KW)

14/22KW

chuck OD/ ID (mm)

780/360

compound three-jaw chuck (mm)

K65-780

distance between two chucks (mm)

2070

inch thread range and number of species (thread per inch)

0.1~254

metric thread range and number of species (mm)

0.1~400

Z
axis

max. travel (mm)

1400

travel speed (m/min)

4~6

min. travel unit (mm)

0.001

repeatability accuracy (mm)

0.020

X
axis

max. travel (mm)

690

travel speed (m/min)

3~5

min. travel unit (mm)

0.001

repeatability accuracy (mm)

0.016

tail
stock

sleeve diameter (mm)

150

sleeve taper

M 6#

sleeve travel (mm)

300

arbor cross-section size

32×32

electric tool post

four-station LD4B-C61125

overall dimensions (L×W×H) (mm)

4100×2550×2700

gross\wet weight (ton)

10.5/10.1



Company Profile

   "Quality Changes the World; Build Up a Brand Name; Make a Name Brand" is our goal.

    Our company is dedicated to the research and development, production and sale of CNC Machine tools. The registered capital of our company is RMB50,000,000; the total floor space is 93000 square meters; the building area is 80000 square meters.

    Our company has carried out ISO9001:2008 Quality Management System and cooperated with major academies regularly to develop different series of CNC machine tools. Our firm has got many national patents and has been awarded the honors of "High and New Tech Enterprise" and "Sincere Enterprise".

    In recent years, adhering to the mission of "Technology, Innovation, Service, Development", our company has constantly enhanced technology research and development and explored the market by researching and producing various series of high-end and new products. Our senior engineers and senior mechanism are the reliable guarantee for the quality products. Sticking to the idea of "quality is the lifeline", our company has formed perfect after-sales service systems. Relying on excellent quality and after-sales service, our products sell well all over the country and gain trust and support from customers.

Our products:
CNC Lathes:
CK6130H , CK6132H, CK6136, CK6136H, CK6140H, CK6140B, CK6140B3H, CK6150B, CK6150B3H, CJK6163, CJK6163H3, CK6163A, CK6163A3H, CK6180A, CK6180A3H, CK61100, CK61100A3H, CK61125A, CK61125A3H, CK61125B, CK61125B3H, CK61160B and CK61160B3H

Length of the Work Piece: 500mm, 750mm, 1m, 1.5m, 2m, 3m, 5m and 8m

CNC Pipe-Threading Lathes:
QK1313a, QK1313b, QK1320A, QK1327A, QK1335B and QK1344B

CNC Heavy-Duty Vertical Lathes:
CK5225, CK5234, CK5240, CK5250, CK5263, CK5280, CK52100 and CK52125
