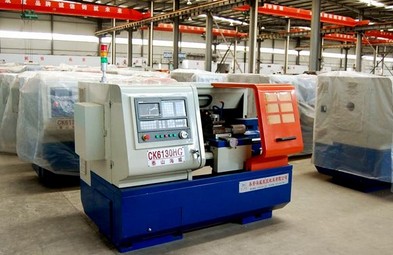

  • CNC Machine Lathe CK6130HG

CNC Machine Lathe CK6130HG

1,CE Certificare 2,we use the NSK bearing and SIMENS controller 3,Schneider breaker 4,Quality change the world Please contact us:zhangmimin122@126.com

Product Details

Quick Details

Description

The usual brand-name accessories:
  1) precision bearing NSK, imported from Japan;
  2) auto centralized lubricating system, imported from Japan;
  3) high-torque spindle motor;
  4) domestic brand-name electric tool post;
  5) domestic brand-name encoder;
  6) domestic brand-name ball-screw;
  7) low-voltage apparatus of Siemens and France  Schneider;
  8) domestic brand-name machine tool accessories;
  9) hydraulic oil pump, hydraulic pump and hydraulic systems of
      Taiwan Chaotian;
  10) solid hydraulic and pneumatic chucks of Taiwan famous brand;
 11)NVC lighting lamp pipe

 Optional NC system of famous brand:
 1) Siemens 802C servo
 2) Siemens 802DSL servo
 3) Japan FANUC 0i-mate-TD servo
 4)Guangzhou NC GSK980TDb servo

CNC lathe      Single spindle

Variable frequency speed regulation

technical parameters

 CK6130HG

center distance (mm)

550

max. swing over bed (mm)

320

width of the bed(mm)

260

max. swing over crossslide (mm)

100

spindle taper

M 6#

spindle bore (mm)

52

variable frequency spindle speed (r/min)

200-3000

high-speed three-jaw chuck (mm)

K11(G)-200

power of main motor (KW)

3

inverter power (KW)

3.7

Z
axis

max. travel (mm)

550

travel speed (m/min)

4~8

min. travel unit (mm)

0.001

repeatability accuracy (mm)

0.016

X
axis

max. travel (mm)

185

travel speed (m/min)

3~5

min. travel unit (mm)

0.001

repeatability accuracy (mm)

0.012

tail
 stock

sleeve diameter (mm)

48

sleeve taper

M 4#

sleeve travel (mm)

100

arbor cross-section size

16×16

electric tool post

four-station LDB4-6125
toolpost of square turret 136×136mm
tool tip height 74mm

overall dimensions (L×W×H) (mm)

1750×1300×1400

 gross\wet weight (ton)

1.6/1.4





Company Profile

   "Quality Changes the World; Build Up a Brand Name; Make a Name Brand" is our goal.

    Our company is dedicated to the research and development, production and sale of CNC Machine tools. The registered capital of our company is RMB50,000,000; the total floor space is 93000 square meters; the building area is 80000 square meters.

    Our company has carried out ISO9001:2008 Quality Management System and cooperated with major academies regularly to develop different series of CNC machine tools. Our firm has got many national patents and has been awarded the honors of "High and New Tech Enterprise" and "Sincere Enterprise".

    In recent years, adhering to the mission of "Technology, Innovation, Service, Development", our company has constantly enhanced technology research and development and explored the market by researching and producing various series of high-end and new products. Our senior engineers and senior mechanism are the reliable guarantee for the quality products. Sticking to the idea of "quality is the lifeline", our company has formed perfect after-sales service systems. Relying on excellent quality and after-sales service, our products sell well all over the country and gain trust and support from customers.

Our products:
CNC Lathes:
CK6130H , CK6132H, CK6136, CK6136H, CK6140H, CK6140B, CK6140B3H, CK6150B, CK6150B3H, CJK6163, CJK6163H3, CK6163A, CK6163A3H, CK6180A, CK6180A3H, CK61100, CK61100A3H, CK61125A, CK61125A3H, CK61125B, CK61125B3H, CK61160B and CK61160B3H

Length of the Work Piece: 500mm, 750mm, 1m, 1.5m, 2m, 3m, 5m and 8m

CNC Pipe-Threading Lathes:
QK1313a, QK1313b, QK1320A, QK1327A, QK1335B and QK1344B

CNC Heavy-Duty Vertical Lathes:
CK5225, CK5234, CK5240, CK5250, CK5263, CK5280, CK52100 and CK52125
