  • CNC Lathe

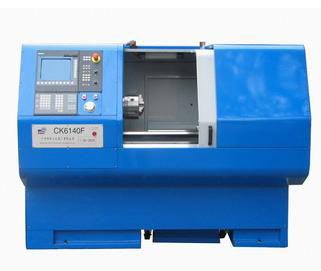

CNC Lathe

CNC Lathe is High over-loading and high speed spindle frequency regulated motor Please contact:yudafu091@yeah.net

Product Details

Quick Details

Description





Z axis travel     mm
650  I  900

Spindle
Spindle speed()     rpm
30~3000
Spindle nose       ISO
ISO702/ IIINO6
Spindle bore(dia)      mm
Φ52
Spindle bearing(dia)   mm
Φ85

Turret
Number of tools
4/6/8
Indexing time     SEC
2.4
Tool shank size    mm
20/25
Boring bar dia    mm
Φ32

Feed
Rapid traverse of X axis  mm/min
4800
Rapid traverse of Z axis  mm/min
6000
Cutting feed X and Z axis  mm/rev
0.01~100

Tailstock
Max travel     mm
600
Quill dia        mm
Φ60
Quill travel     mm
130
Quill taper
MT-4

Motor
Spindle motor    kw
7.5
X Z X and Z axis motor  Nm
x:6 , z:7.5

SINUMERIK 802DType of CNC controller
SIEMENS802C,GSK980TDa

Machine dimensions  L×W×H   mm
2080*1550*1200

Packing dimensions  L×W×H  mm
2240*1880*1440

Net weight                      kg
1600

Gross weight                    kg
1900

Quantities / 40  Container        Sets
8



Company Profile

 We can manufacture various machine tools, such as universal lathes, CNC lathes, vertical drilling machines and machining center.

Our company was established in 1985 with fixed assets exceeding RMB300 million. Our company has independent import and export rights authorized by the State Foreign Economic Trade Committee. Our products are exported to over sixty countries and regions around the five continents. Our products had been given the golden praise of "Mexico-Chinese Practical Economic and Product Trade Exhibition" and the "19th International Golden Star for Excellence in Corporate Appearance and Quality Award".

We are devoted to the innovation of technology and management, and have formed strict, practical and continuously innovative business culture. With the approval of technology committee, our company established a R&D center, which organizes the planning, development and innovation of multiple products, and has developed seven series, over twenty types and over sixty grades of products. The advantages of our CNC lathes are advanced structures, novel types, high quality, high performance and low prices.

Our company was awarded the honors of "Star Company in China" and "Attaching Importance to the Contract, Keeping the Prestige" and our products were awarded titles of "High Quality Products in Guangdong Province" and "Famous Brand Products in Guangzhou City".
