  • CNC Lathe Machine

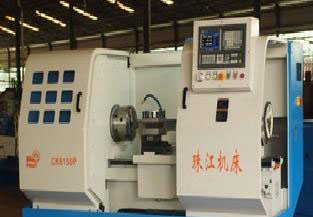

CNC Lathe Machine

1.Japanese precsion NSK angular contact ball bearing 2. frequency stepless speed spindle. Please contact:yudafu091@yeah.net

Product Details

Quick Details

Description

TYPE

CK6150P







Capacity

Max.swing over bed

Φ520

Max turning dia

Φ300

Distance between centers

750/1000/1500/2000

 Bed length

390/240







Spindle

Chuck size

D8 Φ250

Spindle bore taper

MT6#

Spindle motor power

7.5KW

Spindle speed

30-260/100-500/320-1600rpm

Spindle bore (dia)

Φ82

stick dia

Φ80



X axis

Z axis

X axis travel

260

Z  axis travel

700/950/1450/1950

  Rapid traverse

X:4m/min  Z:6m/min

X  axis motor flange size

Φ110

Z  axis motor flange size

Φ110





Turret

Tool position

4/6/8

Direction of turning

Unidirectional

Standard tool shank size

25×25

Max boring bar

Φ32





Tailstock

Quill dia

75

Quill travel

150

Max travel

600/850/1350/1800

Quill taper

MT5#





Machine accuracy

Positioning accuracy

X axis≤0.04:Z axis ≤0.045

Repositioning accuracy

X axis≤0.01:Z axis ≤0.015



Work accuracy

 Circular degree

round≤0.007

Dia

Length≤0.03/300

plane

Dia.≤0.02/300



surface roughness

≤Ra3.2  IT6IT7

Company Profile

 We can manufacture various machine tools, such as universal lathes, CNC lathes, vertical drilling machines and machining center.

Our company was established in 1985 with fixed assets exceeding RMB300 million. Our company has independent import and export rights authorized by the State Foreign Economic Trade Committee. Our products are exported to over sixty countries and regions around the five continents. Our products had been given the golden praise of "Mexico-Chinese Practical Economic and Product Trade Exhibition" and the "19th International Golden Star for Excellence in Corporate Appearance and Quality Award".

We are devoted to the innovation of technology and management, and have formed strict, practical and continuously innovative business culture. With the approval of technology committee, our company established a R&D center, which organizes the planning, development and innovation of multiple products, and has developed seven series, over twenty types and over sixty grades of products. The advantages of our CNC lathes are advanced structures, novel types, high quality, high performance and low prices.

Our company was awarded the honors of "Star Company in China" and "Attaching Importance to the Contract, Keeping the Prestige" and our products were awarded titles of "High Quality Products in Guangdong Province" and "Famous Brand Products in Guangzhou City".
