  • CNC Lathe CK61160B4SF

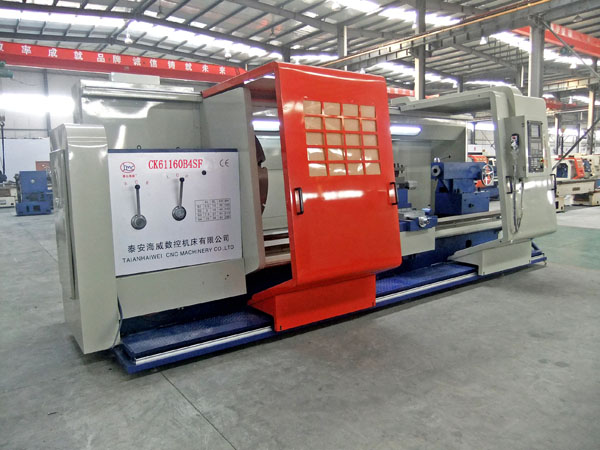

CNC Lathe CK61160B4SF

1,CE Certificare 2,we use the NSK bearing and SIMENS controller 3,Schneider breaker 4,Quality change the world Please contact us:zhangmimin122@126.com

Product Details

Quick Details

Description

 The usual brand-name accessories:
  1) precision bearing NSK, imported from Japan;
  2) auto centralized lubricating system, imported from Japan;
  3) domestic brand-name electric tool post;
  4) domestic brand-name encoder;
  5) domestic brand-name ball-screw;
  6) low-voltage apparatus of Siemens and France Schneider;
  7) domestic brand-name machine tool accessories;
  8) hydraulic oil pump,hydraulic pump and hydraulic systems of Taiwan Chaotian;
  9) solid hydraulic and pneumatic chucks of Taiwan famous brand.

10)NVC lighting lamp pipe

Optional NC system of famous brand:
1) Siemens 802DSL servo
2) Japan FANUC 0i-mate-TD servo

CNC heavy-duty horizontal lathe
Four gears    Servo Variable frequency speed regulation

technical parameters

CK61160B4SF

CK61160B4SF

CK61160B4SF

CK61160B4SF

center distance (mm)

1500

3000

5000

8000

max. swing over bed (mm)

1600

1600

1600

1600

    width of the bed (mm)

755

755

755

755

max. swing over crossslide
(mm)

1150

1150

1150

1150

spindle taper

120/1:20

120/1:20

120/1:20

120/1:20

spindle bore (mm)

100

100

100

100

Servo spindle speed (r/min)

8~300

8~300

8~300

8~300

four-jaw chuck (mm)

K72-1250

K72-1250

K72-1250

K72-1250

Servo main motor power (KW)

22

22

22

22

Z
axis

max.travel (mm)

1400

2850

4800

7800

travel speed (m/min)

4~6

4~6

4~6

4~6

min. travel unit (mm)

0.001

0.001

0.001

0.001

repeatability accuracy
(mm)

0.025

0.025

0.025

0.025

X
axis

max. travel (mm)

830

830

830

830

travel speed (m/min)

3~5

3~5

3~5

3~5

min. travel unit (mm)

0.001

0.001

0.001

0.001

repeatability accuracy(mm)

0.016

0.016

0.016

0.016

tail
stock

sleeve diamete(mm)

150

150

150

150

sleeve taper

M 6#

M 6#

M6#

M 6#

sleeve travel (mm)

300

300

300

300

arbor cross-section size (mm)

40×40

40×40

40×40

40×40

electric tool post

four-station LDB4-6172

overall dimensions (L×W×H (mm)

4850×3300

×3000

6350×3300

×3000

8350×3300

×3000

11350×3300

×3000

Company Profile

   "Quality Changes the World; Build Up a Brand Name; Make a Name Brand" is our goal.

    Our company is dedicated to the research and development, production and sale of CNC Machine tools. The registered capital of our company is RMB50,000,000; the total floor space is 93000 square meters; the building area is 80000 square meters.

    Our company has carried out ISO9001:2008 Quality Management System and cooperated with major academies regularly to develop different series of CNC machine tools. Our firm has got many national patents and has been awarded the honors of "High and New Tech Enterprise" and "Sincere Enterprise".

    In recent years, adhering to the mission of "Technology, Innovation, Service, Development", our company has constantly enhanced technology research and development and explored the market by researching and producing various series of high-end and new products. Our senior engineers and senior mechanism are the reliable guarantee for the quality products. Sticking to the idea of "quality is the lifeline", our company has formed perfect after-sales service systems. Relying on excellent quality and after-sales service, our products sell well all over the country and gain trust and support from customers.

Our products:
CNC Lathes:
CK6130H , CK6132H, CK6136, CK6136H, CK6140H, CK6140B, CK6140B3H, CK6150B, CK6150B3H, CJK6163, CJK6163H3, CK6163A, CK6163A3H, CK6180A, CK6180A3H, CK61100, CK61100A3H, CK61125A, CK61125A3H, CK61125B, CK61125B3H, CK61160B and CK61160B3H

Length of the Work Piece: 500mm, 750mm, 1m, 1.5m, 2m, 3m, 5m and 8m

CNC Pipe-Threading Lathes:
QK1313a, QK1313b, QK1320A, QK1327A, QK1335B and QK1344B

CNC Heavy-Duty Vertical Lathes:
CK5225, CK5234, CK5240, CK5250, CK5263, CK5280, CK52100 and CK52125
