• CNC LATHE CK650

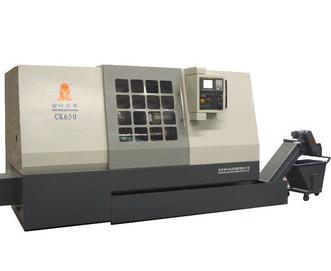

CNC LATHE CK650

Swing over bed 650mm SLANT BED, JAPAN THK LINEAR GUIDE WAY, TAIWAN LIO SHING TURRET, HYDRAULIC STATION, FANUC-0I-MATE-TD Please contact:hexiaojing523@126.com

Product Details

Quick Details

Description

 CNC Lathe CK650


Max. swing over bed: 650mm
Max. dia. of part:(Disc part): 530mm
Max. dia. of part:(Shaft part): 380mm
Distance between centers: 1000mm
Degree of slant bed: 45
Max. travel: X axis:320mm  Z axis: 1000mm
Model of spindle bore: ISOA2-8
Dia of spindle bore: 80mm
Spindle speed: 30-2000r/min (three steps, stepless speed adjustment / Stepless speed  adjustment
Main motor power: 11KW
Size of hydralic chuck of spindle: 250mm
Tool shank size: 25*25mm
Rotary time between adjacent tools: 0.5s
Repeatability:0.005mm
Dia. of tailstock: 100mm
Travel of tailstock: 130mm


Company Profile

In early 2004, after a series of reformation approved by our government, our company,was established as a hi-tech industrial shareholding company out of Changsha No.2 Machine Tool Works which, with 50 years experience of manufacturing lathe, was one of the works manufacturing lathes appointed by Chinese government. With an area of more than 80 mu including almost 30000 square meters of office building and workshop, our company is located in Lugu Industrial Zone, Changsha City, Hunan Province, China. Our assets are totally more than a hundred million yuan including 300 sets of equipment.

Through the hard working of nearly 50 years, we have owned multiple independent intellectual property rights and formed the production pattern of many series & many varieties. We mainly work on developing numerical control series and also produce the universal lathe series. At present, our main products are "Jinling" XK7132, XK7135 CNC milling machine series, XH715, XH716, XH7132, XH7135 machining center series, "Jinling" CK360, CK430, CK630, CKB612123 CNC lathes series, "Jinling" CW61/263C, CW61/2103C, CJ, CX series universal and gap bed lathes, and "Jinling" camshaft CNC grinding machines. The "Jinling" family is all of first-grade quality with reliable performance.

We have already obtained the independent right export of products and won a developing sales network of domestic and international markets. Our products also find a good sale in South Africa, Southeast Asia, Europe, the Middle East, and America. For decades, we have gained the trust of customers by fine performance, high-quality and good after-sale service.

There are hundreds of staff members in our company today and some of them are well known in the field of lathe manufacturing. They compose our powerful research and development team. Supported by the team and advanced technology, we can guarantee the quality of products, and the speed of development and advancing of technology. Under the leadership of board of directors, all staff of our company, based on the principle of "developing national industry, serving customer and society heart and soul", are making efforts to pursue the brighter future with the management concept "based on honesty, developing on science and technology to win the market with quality products and efficient management". Now, a harmonious, innovative, positive and progressive enterprise culture is coming into being in our company.

Geographically our company enjoys advantageous position and convenient transportation, close to Beijing-Guangzhou railway, Beijing-Zhuhai expressway and national highways. You are warmly welcome to visit our company for business opportunity in the future.

Our purpose: developing national industry, offering best service to customers around the world. Our concept: being honest in business and efficient in management, developing technology, pursuing top quality
