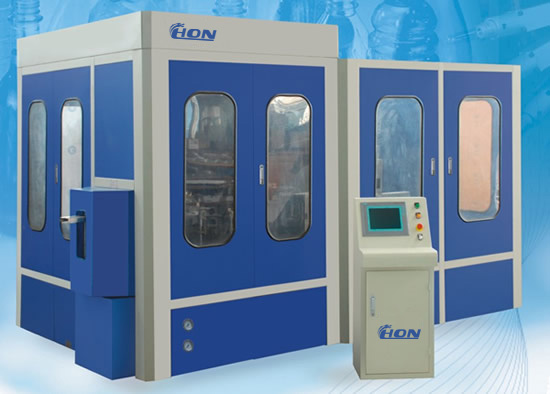

• CM-G4/CM-G6/CM-G8/CM-G10 ROTARY AUTOMATIC Blow Molding Machine

CM-G4/CM-G6/CM-G8/CM-G10 ROTARY AUTOMATIC Blow Molding Machine

CM-G series composed by mechanical, electrical and pneumatic assembly with the latest international high technology. They are automatic, stable, safe, efficient, with speed of 14,000BPH and no contamination in the process. zhangmimin122@126.com

Product Details

Quick Details

Description

*High productivity:1400pcs/cavity/hour.
*High eligible rate: above 99.5%.
*Power saving: heater is fixed with link of short section(pitch50.8mm), which assures to heat more preforms with the same heating length. In this way, it saves electricity of 25%.
*Adopting SIMENS electric controlling system with high precision and fast speed.Stable function: blowing system adopts Germany valve and cylinder, which has stable and accurate stretching speed and good product consistency.
*Mold fixing structure assures fast mold fixing speed and fast mold changing speed.
*Automatic plastic loader and automatic recovery device.

Productivity

Depend on bottle design

4500-6000 pcs/h

7500-9000 pcs/h

9000-12000 pcs/h

11000-15000 pcs/h

Product type

Body diameter

≤120mm

≤120mm

≤120mm

≤120mm

Height

325mm

325mm

325mm

325mm

Neck diameter

18-38mm

18-38mm

18-38mm

18-38mm

Mould

Cavity

4

6

8

10

Mold thickness

ø190mm

ø190mm

ø190mm

ø190mm

Electrical source power

380v/220v 3Phase 50/60Hz

380v/220v 3Phase 50/60Hz

380v/220v 3Phase 50/60Hz

380v/220v 3Phase 50/60Hz

Main machine power

Rated Power

120KW

150KW

180KW

220KW

Really use power

50KW

57KW

80KW

100KW

Air system

HP air compressor

6.4 m3/min 3.0Mpa

10.0 m3/min 3.0Mpa

12.0 m3/min 3.0Mpa

16.0m3/min 3.0Mpa

LP air compressor

-

-

4.0 m3/min 1.0Mpa

6.0m3/min 1.0Mpa

Air Tank

1.0 m3 3.0 Mpa

2.0 m3 3.0 Mpa

2.0 m3 3.0 Mpa

2.0 m3 3.0 Mpa

Air dryer

6.0 m3/min 3.0Mpa

10.0 m3/min 3.0Mpa

12.0 m3/min 30kg

16.0 m3/min 3.0Mpa

Cooling water

Water Chiller

3HP

5HP

8HP

10HP

Machine size

Size(L*W*H)

2780*4000 *2100mm

3200*2730*2190mm

3600*3100 *2190mm

4200*3270*2190mm

Unscrabler size

Size(L*W*H)

1200*500*2800mm

1200*500*2800mm

1400*500*2800mm

1800*500*2800mm

hopper size

Size(L*W*H)

1200*1100*1200mm

1300*1200*1500mm

1300*1200*1500mm

1600*1200*1500mm

Weight



4500 KG

6000 KG

8000 KG

9000KG

Preform unscrambler



PET

PET

PET

PET

Company Profile

Zhejiang Huangyan Longhong Plastic Machinery Factory is a major enterprise specializing in research, development and Producing of bottle blowing machines and injection blowing moulds. Relying on abundant scientific research technology, the factory specializes in research, development and manufacturing of CM series bottle blowing machines and injection blowing moulds, its products have been sold all over the world. The factoryis a group member of China Packing Technology Association and a member unit of China Food and Packing Machinery Industry Association, and is a member factory of China Mineral Water Special Committee.

Rang of products: CM series full automatic, semi-automatic bottle blowing machines, Various PET preform mould, anti-theft plastic cap mould, bottle blow mould, series of PET bottle preforms, anti-theft plastic cap and injection machine with auxiliary machine etc.

The factory always carried on advanced design vision and elaborate production technique, improves production technique and strengthens detection certification,we passed ISO9001: 2000 International Quality System Certification and CE Certification. Its high quality products, advanced technology, affordable price and best after-sales service have gained trust from customers.

We believe that Zhejiang Huangyan Longhong Plastic Machinery Factory is your trustworthy partner who is the most valuable for you to cooperate with, the factory whole heartedly wishes to cooperate with you hand in hand and seek mutual development.
