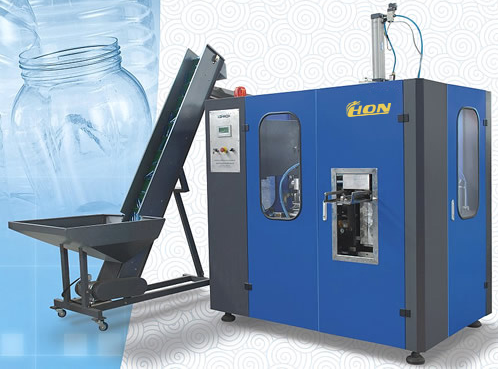

• CM-B2/CM-C3 Full Automatic Blow Molding Machine

CM-B2/CM-C3 Full Automatic Blow Molding Machine

CM-B2/CM-C3 Full automatic blow molding machine is suitable for making PET plastic containers ,It can blow all kinds of bottles in shapes: carbonated bottle, mineral water bottle, pesticide bottle, cosmetics bottle, and other packing containers. it has saved the cost to the maximum extent; it has lower rejection rate, higher capacity, and more stable performance than the semi-automatic one, and moreover, run smoothly and easy for operating. zhangmimin122@126.com

Product Details

Quick Details

Description

*Stable performance with advanced PLC.
*Infrared oven adopts the quartz lamp to heat the PET tube.
*No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
*Low cost, high efficiency, easy operation, easy maintenance, with automatic technological process. Strong clamping force with high pressure and double crank links to lock the mold.

Model

ITEM

CM-B2

CM-C3

Productivity

Depend on bottle design

800-1000PCS/H

1800-2500PCS/H

Product type

Volume

≤5L

≤1.5L

Body diameter

≤175mm

≤100mm

Height

≤330mm

≤305mm

Neck diameter

40mm-45mm

28mm-30mm

Mould

Cavity

2

3

Mold thickness

260mm

240mm

Mold size

480*260*380mm

450*240*360mm

Main machine power

Electrical source power

380V/220V 50/60HZ 3Phase

380V/220V 50/60HZ 3Phase

Power

33kw

25kw

Really use power

13kw

9.5kw

Air system

HP air compressor

4.0m3/min 3.0Mpa

2.0m3/min 3.0Mpa

LP air compressor

1.6m3/min 1.0Mpa

/

Air Tank

1.0m3 3.0Mpa

1.0m3 3.0Mpa

Air dryer

4.0m3/min 3.0Mpa

2.0m3/min 3.0Mpa

Cooling water

Water Chiller

3HP

3HP

Machine

Size(L*W*H)

2500*1500*1800mm

2000*1300*1800mm

Weight

2200kg

1800kg

Preform unscrambler

Size(L*W*H)

2000*950*2480mm

2000*950*2480mm

Weight

250kg

250kg



Company Profile

Zhejiang Huangyan Longhong Plastic Machinery Factory is a major enterprise specializing in research, development and Producing of bottle blowing machines and injection blowing moulds. Relying on abundant scientific research technology, the factory specializes in research, development and manufacturing of CM series bottle blowing machines and injection blowing moulds, its products have been sold all over the world. The factoryis a group member of China Packing Technology Association and a member unit of China Food and Packing Machinery Industry Association, and is a member factory of China Mineral Water Special Committee.

Rang of products: CM series full automatic, semi-automatic bottle blowing machines, Various PET preform mould, anti-theft plastic cap mould, bottle blow mould, series of PET bottle preforms, anti-theft plastic cap and injection machine with auxiliary machine etc.

The factory always carried on advanced design vision and elaborate production technique, improves production technique and strengthens detection certification,we passed ISO9001: 2000 International Quality System Certification and CE Certification. Its high quality products, advanced technology, affordable price and best after-sales service have gained trust from customers.

We believe that Zhejiang Huangyan Longhong Plastic Machinery Factory is your trustworthy partner who is the most valuable for you to cooperate with, the factory whole heartedly wishes to cooperate with you hand in hand and seek mutual development.
