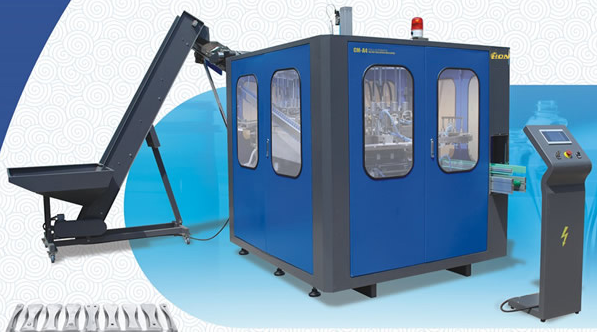

CM-A4 Full Automatic Blow Molding Machine

CM-A2/A4 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used for producing the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle and cosmetics bottle. zhangmimin122@126.com

Product Details

Quick Details

Description

*Reasonable design, full automaticlly control, save power and labor.
*Feeding system carries the preforms by robot arms automatically.
*Infrared oven heater adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe for operation, easy for maintenance.

Productivity

Depend on bottle design

1800-2000PCS/H

3200-4000PCS/H

Product type

Volume

≤2L

≤2L

Body diameter

≤100mm

≤100mm

Height

≤310mm

≤310mm

Neck diameter

≤38mm

≤38mm

Mould

Cavity

2

4

Mold thickness

240mm

240mm

Mold size

260*240*370mm

510*240*360mm

Main machine power

Electrical source power

380V/220V 50/60HZ 3Phase

380V/220V 50/60HZ 3Phase

Power

25kw

49kw

Really use power

6.5kw

13kw

Air system

HP air compressor

1.4 m3/min 3.0Mpa

2.0 m3/min 3.0Mpa

LP air compressor

1.0 m3/min 1.0Mpa

1.6 m3/min 1.0Mpa

Air Tank

0.6m3 3.0Mpa

0.6m3 3.0Mpa

Air dryer

1.0m3/min 3.0Mpa

2.0m3/min 3.0Mpa

Cooling water

Water Chiller

3HP

3HP

Machine

Size(L*W*H)

1900*1280*1930mm

1900*1860*1930mm

Weight

2000kg

3000kg

Preform unscrambler

Size(L*W*H)

2000*950*2480mm

2000*950*2480mm

Weight

250kg

250kg



Company Profile

Zhejiang Huangyan Longhong Plastic Machinery Factory is a major enterprise specializing in research, development and Producing of bottle blowing machines and injection blowing moulds. Relying on abundant scientific research technology, the factory specializes in research, development and manufacturing of CM series bottle blowing machines and injection blowing moulds, its products have been sold all over the world. The factoryis a group member of China Packing Technology Association and a member unit of China Food and Packing Machinery Industry Association, and is a member factory of China Mineral Water Special Committee.

Rang of products: CM series full automatic, semi-automatic bottle blowing machines, Various PET preform mould, anti-theft plastic cap mould, bottle blow mould, series of PET bottle preforms, anti-theft plastic cap and injection machine with auxiliary machine etc.

The factory always carried on advanced design vision and elaborate production technique, improves production technique and strengthens detection certification,we passed ISO9001: 2000 International Quality System Certification and CE Certification. Its high quality products, advanced technology, affordable price and best after-sales service have gained trust from customers.

We believe that Zhejiang Huangyan Longhong Plastic Machinery Factory is your trustworthy partner who is the most valuable for you to cooperate with, the factory whole heartedly wishes to cooperate with you hand in hand and seek mutual development.
