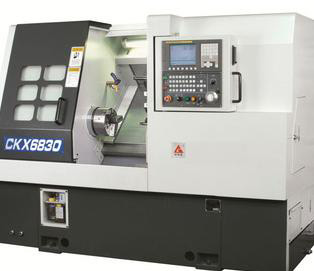

CKX6820 CNC Slant bed Lathe

CNC Slant bed Lathe, linear guid, high precision Mechanical-electrical-hydraulic integration. Wholly oblique bed. CKX6820 CNC Slant bed Lathe Please contact:wangxun124@163.com

Product Details

Quick Details

Description

Main Specifications
CKX6820
Max. swing dia. over bed (mm)
Φ380
Max. swing dia. over carriage (mm)
Φ320
Max. turning dia. for chuck/shaft
Φ200/60
Max. processing length (mm)
340
Dia. of spindle bearing (mm)
Φ80
Dia. of spindle through hole (mm)
Φ52
Taper of spindle hole morse
Morse6#
Spindle nose size
A2-5
Spindle R.P.M (r/min)
60-5000
Main motor power (kw)
5.5-7.5
Min. movement (mm)
0.0005/0.001
Rapid movement (X axis /Z axis)(m/min)
20/20
Dia of hollow hydraulic chuck
6"
Stations of Hydraulic turret
8
Tool shank size (mm)
20×20
Max. dia. of boring tools (mm)
Φ25
Dia. of tailstock sleeve (mm)
Φ80
Max. travel of tailstock sleeve (mm)
80
Overall size (L×W×H) (mm)
2125×1345×1600
Machine weight(Net/Gross)(kg)
2600/3000



Company Profile

 Chizhou Household Machine Tool Co., Ltd., established in 1958, locates in Chizhou City of Anhui Province. The former name is Guichi Agriculture Machinery Factory, which owns a long history after several evolutions. Our formerly produced products include diesel engines, walking-tractors, agricultural motors and so on. Since 1986, our company has switched to manufacture household combination machine tools - multi-purpose machines for European and American markets, renamed as Anhui Chizhou Household Machine Tool Co., Ltd.

We are specialized in small size machine tools and CNC machines, and are one of the five important enterprises of small-size machine tools, "Provincial High Technological Enterprise", and "National Export Base of Mechanical and Electrical Products", with direct import and export right. We take the quality as life and we establish a scientific and serious quality guarantee system. Our quality system is ISO9001 certified. We gained CE certificate from TUV in 2007 for all of our products.

There are nearly 400 personnel in our company, including 72 technological developing and research persons. We have a technology research team headed by Mr. Xu Xiangtai who is a nationally famous CNC expert, and a provincial technology center was founded by us, too.

Our company is divided into north and south areas. The total area is 150,000 square meters. The workhouse area is 69,000 square meters. The south area, of 90,045 square meters, is located in Industrial Zone of South Part of Chizhou City with standard workhouses and multi-offices of 36,000 square meters. The south area is the center of decision, production, technology development and research, marketing and management of our company and takes on the assembly work of main parts and precisions parts. The north area, of 59,400 square meters, is beside the south part of Yangtze River with the workhouses of 33,000 square meters, and takes on the work of foundry, spare part manufacture, heat treatment and packing.
