• CKD-1200 Automatic Arc-edge Marble Granite Ceramic Tiles Polishing Machine

CKD-1200 Automatic Arc-edge Marble Granite Ceramic Tiles Polishing Machine

CKD-1200 Automatic Arc-Edge Polishing Machine, Is an updated equipment in the view of the advantages & disadvantages of various edge rounding machines in the market.

Product Details

Quick Details

Description

1. Introduction

CKD-1200 Automatic Arc-Edge Polishing Machine, Is an updated equipment in the view of the advantages & disadvantages of various edge rounding machines in the market. This machine possesses multiple functions, And the operation is easy, Convenient, Smooth and stable without much vibration & noises.  The equipment for the ceramic, stone deep processing equipment, the machine can process staircase, foot line, 45-degree bevel and so on.
Main Functions for marble / ceramic tiles/ granite:
Squaring, Chamfering, Edge rounding, Polishing, Slotting, 45degree chamfering & polishing, Reversed angle chamfering, Stair steps.





2. Features

1) Full automation, The stable performance can free more hands to do something else.

2) Simple installation, Compatible to production line without too much revising to the machine.

3) Easy operation, Just a few hours' training is sufficient for operators to learn how to use.

4) Low maintenance cost, All the consumables, accessories and spare parts are in international standard.

5) Large amount of output.

6) Long Service life.



3. Parameters

1.

conveying belt:

1pc

2.

polishing head qty:

14pcs/2=7set*1.5kw

3.

polishing head dia.:

95mm

4.

straight flange squaring:

1pc*3kw

5.

straight flange squaring wheel:

200mm

6.

30degrees squaring:

1pc*2.2kw

7.

45degrees squaring:

2pcs*2.2kw

8.

60degrees squaring:

1pc*2.2kw

9.

squaring wheel dia.:

150mm

10.

slotting:

1pc*3kw

11.

slotting saw blade:

110mm

12.

down chanfer grinding head:

1pc*2.2kw

13.

swing motor power:

4kw

14.

block motor power:

0.75kw

15.

working width:

80-1200mm

16.

polishing speed:

3-10m/min

17.

working thickness:

6-30mm

18.

total power:

32.25kw

19.

air pressure:

5map



Company Profile

FOSHAN CHUANGKINGDA(CKD) MACHINERY CO., LTD is specialized in the research and production of mechanical equipments such as Ceramic Tiles Cutting Machine, Stone Granite Marble Tiles Arc-edge Polishing Machine, Squaring Chamfering Machine, Wall Tiles Squaring Chamfering Produce Line, etc. Being an industry & trade integration of Mechanical Co.,Ltd, it is with a combination of ceramic equipment research & research,manufacturing,Sales & After-sales service. Having a group of experienced engineers , professional technical personnel and after sale service team, and complete machining capacity, our company adhering to the " refining on, cooperation and win-win" business philosophy. With the strategic goal of “ChuangKingDa, Made in China, Achieves the life, Towards the world!” , we keep constant research and development, Manufacture and sales of new products with high technological content, high quality to meet market demand, making customers be richly rewarded.

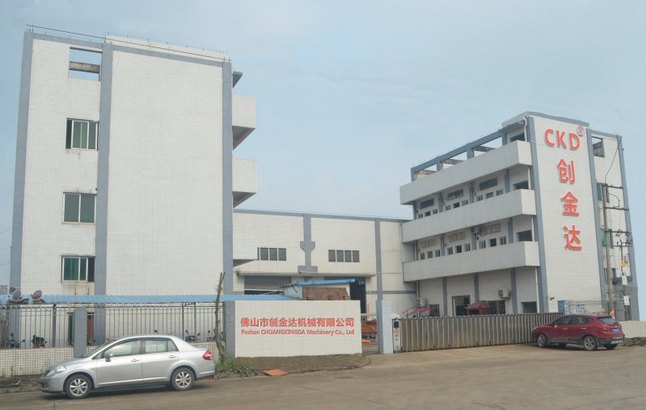

FOSHAN CHUANGKINGDA(CKD) MACHINERY CO., LTD
