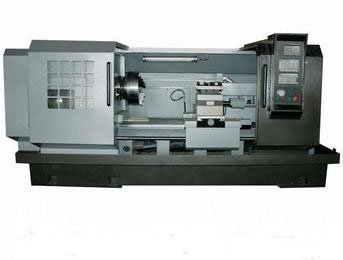

• CK6180E mini cnc lathe machine

CK6180E mini cnc lathe machine

CK6180E mini cnc lathe machine 1)Spindle speed:25-850 r/min 2)Servo drive motor 3)GSK, FANUC or SIEMENS system Please contact:zhuxiaochen124@126.com

Product Details

Quick Details

Description

Item Specification CK6180E
  Max. swing dia. over bed     (mm) 800
Main specs Max. swing dia. over slide    (mm) 480
  Max. length of workpiece     (mm) 1000, 1500, 3000
  Form of main drive three step mechanical speed, Stepless Frequency Conversion Timing
  Step of spindle speed Stepless
  Spindle speed               (r/min) 25-850
Main drive style Structure of spindle nose  C11
  Spindle bore                (mm) 105
  Taper of spindle bore  120, 1:20
  Model of main motor YVP160M– 4- 11KW
  Max traverse of toolpost       (mm) X-direction:500; Z-direction:1200,1660, 3100
  Diameter of ball screw× thread pitch  (mm) X-direction:3205; Z-direction:5010
  Rapid traverse feed          (mm/min) X-direction:4000; Z-direction: 5000
  Positioning accuracy         (mm) X-direction: 0.025; Z-direction: 0.03
  Repeatability accuracy        (mm) X-direction: 0.01; Z-direction: 0.015
Feed  Machining accuracy for workpiece    IT6-IT7
  Roughness of the workpiece surface Ra1.6
  Diameter of tailstock quill      (mm) 100
Tailstock  Travel of tailstock quill         (mm) 250
  Taper of tailstock quill Mohs 6#
  Standard configuration four Electrical toolposts
Toolpost Special configuration Six(eight) Electrical toolposts
  Repeatability accuracy         (mm) 0.008
  Section of turning tool         (mm) 30×30
  CNC system Standard GSK980TDb
  Special KND, FANUC, Siemens,
Control system Servo drive motor X-direction: X130SJT-M100B; Z-direction: X130SJT-M100B
Overall size and net weight of lathe Dimension (L*W*H)     (mm) 3200 (3700) (5200)×1820×1780
Net weight 3600, 3900, 5400

Company Profile

We are a investment enterprises of cross-sectoral, trans-regional, with modern concept and investment diversification, respectively located in Beijing, Zhejiang, Jiangsu, Yunnan and so on, developing CNC machine , software, logistics and other industries
Machinery-HHT, superb technical core manufacture for 20 years in TaiWan, possessing the most advanced and the most sophisticated heavy machinery equipment. THE producing machine being Imported from Spain and Italy: CNC Gantry five face equipment , CNC horizontal machining center, CNC five surface slideway grinding machine , CNC horizontal boring and milling machine with double table, and sophisticated testing equipment,all of them are great pieces in CNC machine industry products. Large-scale R & D team and customer service technology group, We can have the installation and commissioning to every country and 24 hour video guide.
The main production: CNC vertical machining center, CNC horizontal machining centers, CNC lathes, Gantry CNC machining center, CNC drilling and tapping machine, CNC lathing and milling machine center. The main customer base for precision mold industry, auto industry, the electronic communications industry, processing precision parts industry , aerospace industry and so on.
JIANHAI Group in accordance with "Lawfully operate, equality and voluntariness, safe and steady, market-oriented operation" management philosophy.Relying on Group's extensive investment and financing channels, fully integrated resources advantage, professional advantage. Always adhere to the market as the guidance, resource integration, capital operation as the means, combined with many investment ways,make the group develop repidly !
