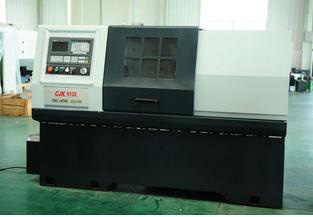

• CK6132 x 1000MM CNC metal cutting lathe machinery

CK6132 x 1000MM CNC metal cutting lathe machinery

Professor producer of CNC lathe machinery CK6136CNC lathe is mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thread of shaft, etc., with high efficiency and accurate processing. The cutting tools carrier is equipped with 4-station, or 6-stations tool holder. Now we adopt GUANGZHOU GSK980TA controlling system or use other imported CNC system such as Simens system according to customer requests. The spindle speed can be adjusted either by frequency alternation or by mechanical shifting. The spindle supporter is adopted with preloading Japan NSK accurate and angular contact rolling bearings and the bed way has been finely grinded after ultra-tone quenching. Please contact:wangxun124@163.com

Product Details

Quick Details

Description

  Item   CK6132/1000mm

Swing over bed



Φ330mm



Swing over camiage



Φ160mm



Distance between centers



1000mm



Spindle hole



 Φ51mm


Range of speed(variable)
  100~2500r/min

 Main motor power



3kw

  Feeding motor powerXZ    1kw   Min.feeding set unitXZ   0.001mm   TravelX/Z   170mm/1000mm   Fast movingX/Z   6m/min 12m/min

Taper of barrel



M.T.3



 barrel diameter



 Φ45mm



 Barrel travel



 140mm/min



 tool post form



vertical electrical 4 stations



 Size of tool post



16×16mm



 Metric threads can be cut



0.25-12mm



Inch threads can be cut



 33.5-3T/IN



 N.Weight kgs



 2000kgs



 Overall sizeL×W×H



 2300×1100×1650mm

Company Profile

 Chizhou Household Machine Tool Co., Ltd., established in 1958, locates in Chizhou City of Anhui Province. The former name is Guichi Agriculture Machinery Factory, which owns a long history after several evolutions. Our formerly produced products include diesel engines, walking-tractors, agricultural motors and so on. Since 1986, our company has switched to manufacture household combination machine tools - multi-purpose machines for European and American markets, renamed as Anhui Chizhou Household Machine Tool Co., Ltd.

We are specialized in small size machine tools and CNC machines, and are one of the five important enterprises of small-size machine tools, "Provincial High Technological Enterprise", and "National Export Base of Mechanical and Electrical Products", with direct import and export right. We take the quality as life and we establish a scientific and serious quality guarantee system. Our quality system is ISO9001 certified. We gained CE certificate from TUV in 2007 for all of our products.

There are nearly 400 personnel in our company, including 72 technological developing and research persons. We have a technology research team headed by Mr. Xu Xiangtai who is a nationally famous CNC expert, and a provincial technology center was founded by us, too.

Our company is divided into north and south areas. The total area is 150,000 square meters. The workhouse area is 69,000 square meters. The south area, of 90,045 square meters, is located in Industrial Zone of South Part of Chizhou City with standard workhouses and multi-offices of 36,000 square meters. The south area is the center of decision, production, technology development and research, marketing and management of our company and takes on the assembly work of main parts and precisions parts. The north area, of 59,400 square meters, is beside the south part of Yangtze River with the workhouses of 33,000 square meters, and takes on the work of foundry, spare part manufacture, heat treatment and packing.
