  • CK5112 CNC big bore lathe

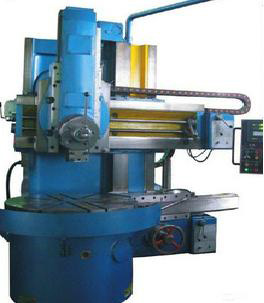

CK5112 CNC big bore lathe

1. Vertical big bore lathe 2. Dalian manufacturer 3. ISO certificates 4. Max turning dia.1250mm Please contact me:wangxun124@163.com

Product Details

Quick Details

Description





Parameters of CK5112

max turning dia. 1250mm
table dia. 1000mm
max height of job 1000mm
max load of table 3.5t
max torque of table 17Knm
speed range of table 6.3-200 rpm
max cutting force of vertical railhead 18Kn
power of motor 18.5kw
overall dimension 2187*2710*3405mm
net weight of machine (approx.) 8.5t









Company Profile

 YUYI Machinery (Manufacturing) Co., Ltd. is a professional & original manufacturer and exporter of vertical lathes, which is an industrial base in North China. There are more than 100 skilled workers working for the excellent quality of our machines. We have workshop which cover an area of more than 10000 square meters. we have our own exportation right to any countries. We pass ISO9001&2008 quality system certificate. .
What's more, with an experienced team of engineers and marketing personnel, we are confident to provide stable and accurate machines on the basis of reasonable prices for our customers. Welcome contact and visit!
