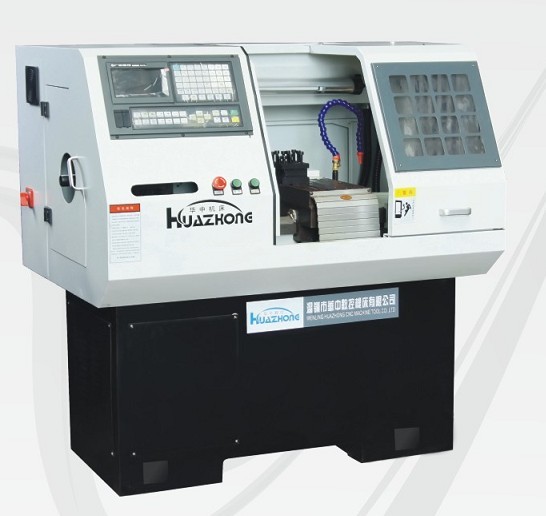

• CK0640 series CNC machine tool

CK0640 series CNC machine tool

CK0640 series has a unique design aesthetic with high-speed, precision,Efficient, the shape of turning the various features of complex parts, suitable for auto parts,Fittings, valves and other parts of the high-volume processing. Also suitable for small and medium-sized production. Please contact us:zhaomachine@163.com 赵玉云/CARA.ZHAO TEL:86-0411-39803827 FAX:86-0411-39803301 Mobile phone:86-013309862893

Product Details

Quick Details

Description

Characteristics:

The machine has a unique design aesthetic with high-speed, precision,Efficient, the shape of turning the various features of complex parts, suitable for auto parts,Fittings, valves and other parts of the high-volume processing. Also suitable for small and medium-sized production.
1、clamping the work of the form: three-jaw chuck, hydraulic chuck.
2、the standard computer configuration NC Guangzhou.
3、 machine tool accessories, control systems to choose in accordance with user requirements. (Four, six-station Tool, knife tool optional row; optional manual tailstock hydraulic, hydraulic chuck,Hydraulic cylinder optional)
4、 product descriptions, samples, pictures and technical parameters such as the development and changes, without notice.

Technical parameters


ltem

unit

specifications

Max.swing over carriage

mm

Ø90

Max.swing over bed

mm

Ø300

X to the maximum stroke

mm

260

Z to the maximum stroke

mm

170

Max.turning len

mm

170

Spindle bore

mm

Ø40

With the spring clamper

mm

Ø56

Range of spindle speeds

rpm

Double speed960-1440rpm or

Frequency conversion150-3000rpm

X-axis speed of fast forward

mm/min

Stepping 3000, servo 5000

Z-axis speed of fast forward

mm/min

Stepping 6000, servo 10000

X-axis minimum setting unit

mm

0.001

Z-axis minimum setting unit

mm

0.001

Metric thread

mm

0.25-100

Inch screw thread

mm

100-4TPI

Tool post type



scheduling tool optional

Main power

kw

2.2(frequency conversion motor)

DIMENSIONS(L x W x H)

mm

1250X900X1360

Net weigh

kg

800




     If you are interest in our machine tools, welcome to visit factory. Supply you with free accommodation,food and presentation.

赵玉云/CARA.ZHAO
TEL:86-0411-39803827
FAX:86-0411-39803301
Mobile phone:86-013309862893
EMAIL:zhaomachine@163.com



Company Profile

       Hua Zhong CNC Machine Tool Co., Ltd. Is a professional CNC machine tool manufacturing business, the company is located in economically developed coastal city-Wenling city, in the heart of industrial area-Xinhe industrial zone, close to Chinese 104 national road(Yong-Tai-Wen Expressway). So the transportation is convenient. Since the beginning, the company has been adhering to the tenet-“customer first, reputation first”, determining in the product development, constantly innovating and adopting flexible business approach, which provide customers with quality products and quality service.
        We independently research and develop the CK0620,CK6130,CK6136,CK6140,CK6150 series of CNC machine tools and we also customize a large number of high quality special machine tools for many enterprise, which are very welcomed by the majority of new and old customers for the favorable price. Our purpose is to supply High-quality products and perfect after-sales service. These are the pursuit of all our employees and what make customer trust.
       Hua Zhong CNC machine tools always adhere to the service principle of “customer- centered” continuous improvement of products to meet customer needs, self-improvement and development, and dedicate to providing quality products to our customers at home and aboard, warmly welcome new and customer come to welcome.
