• CIL-NP-35 Automatic napkin paper packing machine

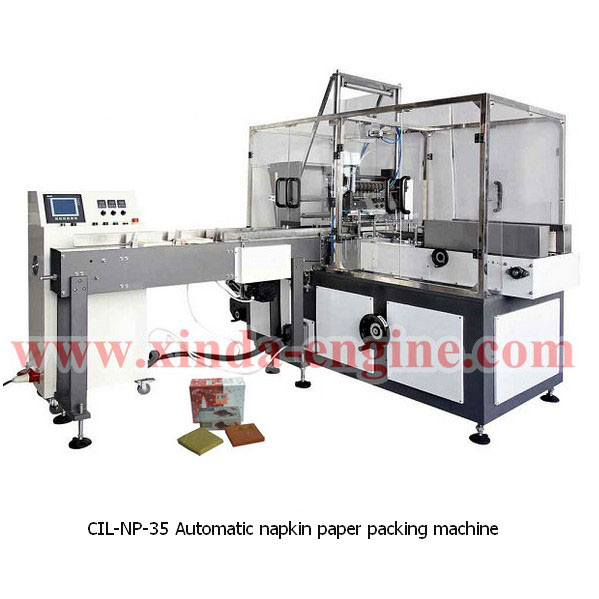

CIL-NP-35 Automatic napkin paper packing machine

CIL-NP-35 Automatic napkin paper packing machine is suitable for the packing of thin napkins and square tissues.

Product Details

Quick Details Parameter

Packing speed: : 25~35 packages/min
Power supply: : 380V、50Hz
Power of main driving motor: : 0.75 KW
Power of heating: : 3 KW
Total power: : 6.33 KW
Film Thickness: : 0.035~0.05mm
Main machine overall size(L×W×H): : 2544×2600×2020mm
Weight: : 2000 kg

Description

CIL-NP-35 Automatic napkin paper packing machine
Characteristic:
1. This machine suitable for the packing of thin napkins and square tissues.
2. Adopt multi-function digital frequency control, PLC to make the control more advanced, easy to adjust and maintains。
3. Touch screen human-machine operation interface ,easy to set the parameter.
4. Alarm automatically when there is no film, malfunction alarm display, to make operation and maintains easier and faster.
5. The control of length of film has been set with two model, one is the setting of length ,the other is color code tracking.
6. Main electric elements adopts international famous brand, the quality is more stable and reliable.
7. Vacuum film feeding system to make the feeding of film more smoothly and running more stable.
8. The machine can equip with coding unit and code printing unit.
9. Change the specification more easy and faster.
Using range and technical parameter
This machine suitable for the packing of printed napkin which thickness is more thin and corresponding size square tissue, also suitable for the transparent film three-dimensional outside packing of other square type of corresponding specification. This machine has the feature of tight structure, graceful outline, easy operation, convenient for maintenance, high degree autoimmunization and other advantages. This is a ideal automatic packing equipment for printed napkin paper. Also, it is the most advanced automatic napkin paper packing machine in domestic presently.
Technical parameter:
Packing speed:25~35 packages/min
Packing range ;L:100~180 W:100~180 H:15~50
Different specification maybe require to change corresponding “specification alternation parts” or alter mechanism.
Power supply: 380V    50Hz
Power of main driving motor :0.75 KW
Power of heating: 3 KW
Total power: 6.33 KW
Pressure air:    0.6MPa   Prepared by users.
Packing material:    CPP 、OPP double-side hot sealing-film Thickness:0.035~0.05mm
Main machine overall size(L×W×H): 2544×2600×2020mm
Weight:    2000 kg

CIL-NP-35 Automatic napkin paper packing machine
