• CIL-AS-288 Automatic Three-folded(N folded) Towel paper Machine

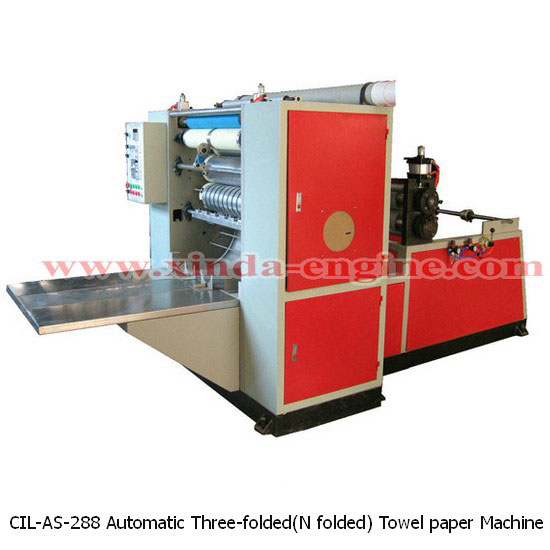

CIL-AS-288 Automatic Three-folded(N folded) Towel paper Machine

CIL-AS-288 Automatic Three-folded(N folded) Towel paper Machine is used widely in hotel, office and kitchen etc, that is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong .

Product Details

Quick Details Parameter

Production Speed: : 60~100 m/min
Range of raw material: : 33-47g/m2
Power: : 5.5Kw (380V 50Hz)
Overall size (m): : 4.1×1.3×2.1(L×W×H )
Weight: : 3.5T

Description

CIL-AS-288 Automatic Three-folded(N folded) Towel paper Machine

The machine embossing and cutting off the towel paper .The folding of product is “N” type folding and you can draw it one by one .This kind of towel paperis used widely in hotel, office and kitchen etc, that is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong .The folding, cutting ,counting etc several processes are going together.

Function and character
1.Count automatically and output in order.
2.Adopt screw turning knife to cut and vacuum absorption to fold.
3.Adopt step-less adjusting speed to roll which may fix different tension of raw paper.
4.Control pneumatic with electric convenient to operate.
5.Capable of forming complete set of rolling figure unit with clear look.
6.Have a wide range of production width for user to sale conveniently.

Main technology parameter:
1.Production Speed: 60~100 m/min
2.Range of raw material:33-47g/m2(single layer)
3.power: 5.5Kw (380V 50Hz)
4..Overall size (m): 4.1×1.3×2.1(L×W×H )
5.Weight: 3.5T

After-sale services
1.      The machine will guaranteed for one year. We will replace the damaged spare parts (except easy damageable parts)within one year. After one year, we will trace the technology and quality for long time.
2.      We will equipment the easy damageable parts with the machine.

Specification of raw material
1.      The width of raw material: 460mm
2.      The diameter of raw material: 700mm-1000mm
3.      The thickness of raw material : 33g/,m2-47g/ m2
4.      The diameter of core: 67 mm

CIL-AS-288 Automatic Three-folded(N folded) Towel paper Machine
