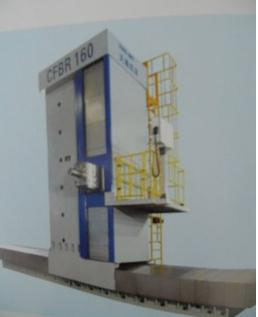

• CFBR130/160 CNC FLOOR TYPE HORIZONTAL BORING AND MILLING MACHINCE

CFBR130/160 CNC FLOOR TYPE HORIZONTAL BORING AND MILLING MACHINCE

CNC FLOOR TYPE HORIZONTAL BORING AND MILLING MACHINCE: 1.Spindle Diameter:130/160mm 2. With Ram 3.high precision and good sta Please contact:zhuxiaochen124@126.com

Product Details

Quick Details

Description

 CNC FLOOR TYPE HORIZONTAL BORING AND MILLING MACHINCE:

             Type
 Specification
CFBR130
CFBR160
 Spindle diameter
mm
130
160
Diameter of milling Spindle
mm
221
240
Spindle speed
r/min
10-2000
10-1500
Ram size
mm
450*500
450*500
Spindle taper
-
ISO50  7:24
ISO50  7:24
Power of Spindle motor
KW(s1/s2)
30/41
37/51
Motor total power
KW
100
120
Spindle torque
Nm
3000
3600
Spindle resisting force
N
35000
40000
Torque of milling spindle
Nm
4000
5000
Shank
-
JT50#
JT50#
Pull stud
-
LD50D
LD50D
Cross travel of column   X
mm
4000(can lengthen)
6000(can lengthen)
Vertical travel of spindle head Y
mm
2000(2500/3000)
3000(3500/4000)
Ram travel   Z
mm
900
4000
Axial travel of spindle
mm
800
900
Rapid traverse  X  Y
              Z  W
mm/min
10000
6000
10000
6000
Feedrate     X  Y
            Z  W
mm/min
1-6000
1-4000
1-6000
1-4000
Positioning accuracy X  Y
                  Z  W
Mm
±0.025 /1000
±0.03
±0.025 /1000
±0.03
Repeatability
Mm
±0.02
±0.02
±0.02
±0.02
CNC system
-
FANNUC 840D (optional 18i and 8055M

Weight
KG
68000
86000(115000)


Company Profile

We are a investment enterprises of cross-sectoral, trans-regional, with modern concept and investment diversification, respectively located in Beijing, Zhejiang, Jiangsu, Yunnan and so on, developing CNC machine , software, logistics and other industries
Machinery-HHT, superb technical core manufacture for 20 years in TaiWan, possessing the most advanced and the most sophisticated heavy machinery equipment. THE producing machine being Imported from Spain and Italy: CNC Gantry five face equipment , CNC horizontal machining center, CNC five surface slideway grinding machine , CNC horizontal boring and milling machine with double table, and sophisticated testing equipment,all of them are great pieces in CNC machine industry products. Large-scale R & D team and customer service technology group, We can have the installation and commissioning to every country and 24 hour video guide.
The main production: CNC vertical machining center, CNC horizontal machining centers, CNC lathes, Gantry CNC machining center, CNC drilling and tapping machine, CNC lathing and milling machine center. The main customer base for precision mold industry, auto industry, the electronic communications industry, processing precision parts industry , aerospace industry and so on.
JIANHAI Group in accordance with "Lawfully operate, equality and voluntariness, safe and steady, market-oriented operation" management philosophy.Relying on Group's extensive investment and financing channels, fully integrated resources advantage, professional advantage. Always adhere to the market as the guidance, resource integration, capital operation as the means, combined with many investment ways,make the group develop repidly !
