• CCGF series sterilizing-washing-filling-calling-capping 4-in-1 monobloc

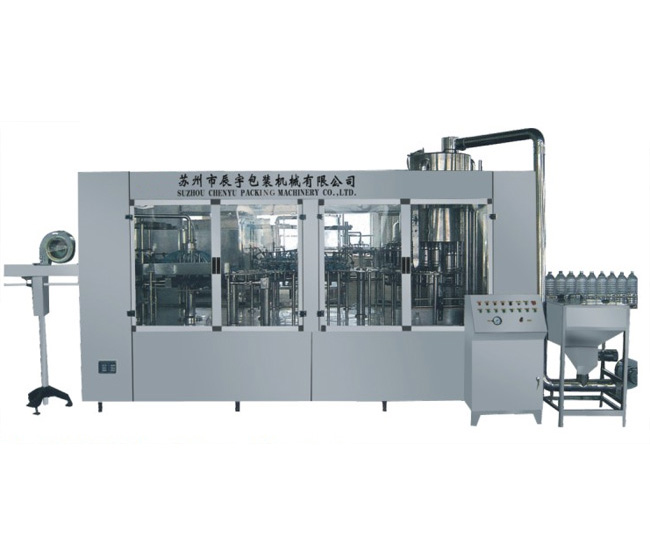

CCGF series sterilizing-washing-filling-calling-capping 4-in-1 monobloc

The series equipment is used in filling pure water, mineral water and other drink which does not contain any gas in PET bottles. yudafu091@yeah.net

Product Details

Quick Details

Description

The series equipment is used in filling pure water, mineral water and other drink which does not contain any gas in PET bottles. On one machine, it can carry out sterilizing, washing, filling, capping. The machine adopts filling in normal temperature and normal pressure. The special filling valve makes the filling speed fast and the filling liquid level control correct. The machine adopts frequency control and PLC control. The operation and maintenance are convenient. It is suitable for thinner PET bottles.

Model:

CCGF16-16-12-6

CCGF18-18-18-6

CCGF24-24-24-8

Production Capacity:500ml

4000

6000

10000

Suitable Bottle Standard:(mm)

150-300

150-340

150-340

Suitable Cap Standard:(mm)

φ50-φ110

Filling Pressure:(Mpa)

0.2-0.3

Filling Model:

4.1

Installed Capacity:(kw)

3.8

3.84

5.6

Overall Size L×W×H(mm)

3050×2000×2350

3170×2070×2350

4070×2470×2350

Total Weight:(kg)

3000

4000

5000

Company Profile

Suzhou City Chenyu Packing Machinery Co., Ltd. is a joint venture which is invested by Heifei Zhongchen Light-Industry Machinery Co., Ltd. and Zhangjiagang Dayu Machinery Co., Ltd. It is a professional company specializing in R & D, manufacturing, technical service and sales of beer and beverage packing machinery.

The company has been treat market as its guidance, technology as the its spigot, quality as its main line, after-sales service as the its reliable guarantee. It follows the international quality management system ISO9001: 2000, and established and perfected the quality guarantees systems which ensure the quality and performance of products. It is equipped with perfect testing and inspecting facilities, and it has high-quality technology development team and production experience, all of above ensure the advanced quality and performances of company products.
Among the products, RCGF series, CGF series, DCGF series bottle packing and QGF series barrel packing beverage production lines and QHS series beverage mixer are all designed and made on the base of importing the advanced technology from German, Italy and Japan and its technology keeps the same level as international. Also the company provides technical consultation, factory planning, installing and adjusting technological train and other services.
Now, our products are popular home and abroad, and have been sold to south-east Asia, Russia, Mideast, Africa, South America, and so on, more than 20 countries. Sincerely welcome the presence of friends all over the world.
