C5225 double column vertical lathe

1. C5225double column vertical lathe

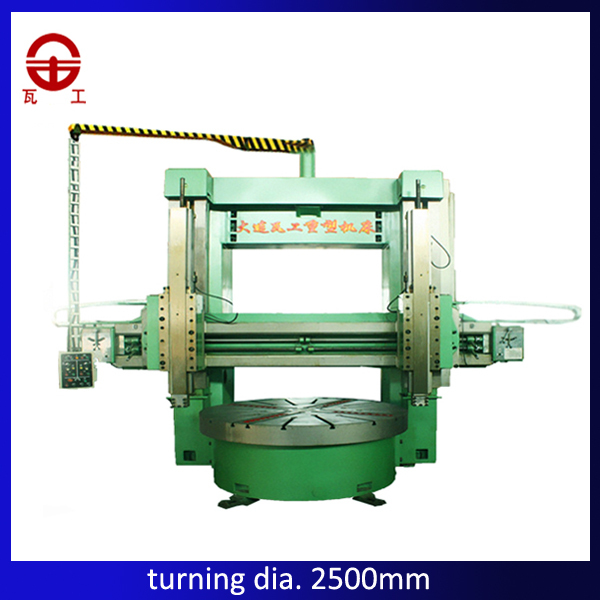

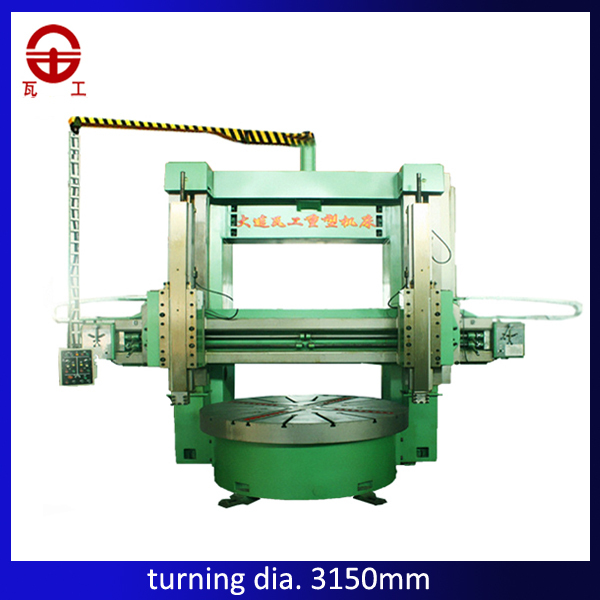

2. the table diameter : 3150mm
3.the Max. turning diameter : 2800mm

Product Details

Quick Details Parameter

Place of Origin : Liaoning, China
Type : Vertical
Brand Name : DLWG
Model Number : C5225
Voltage : 380V,3 PHRASE
Weight : 38000KG
turning accuracy : 0.04

Description

C5225 double column vertical lathe

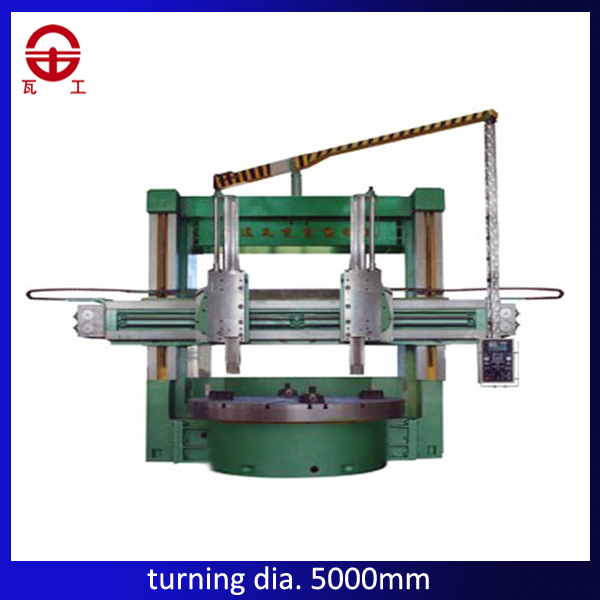

1. all the double column vertical lathe parameter list

No. Name Unit C5225 C5231 CQ5240 C5240 C5250 C5263
1 Max.turning diameter mm 2500 3150 4000 4000 5000 6300
2 Table diameter mm 2250 2830 2830 3200 4500 6000
3 Max.height of workpiece mm 1600 2000 2000 2500 3150 3150
4 Max.weight of workpiece T 10 32 10 32 50 50
5 Horizontal travel of tool post  mm 1400 1735 2150 2160 50~2765 3415
6 Vertical travel of tool post mm 1250 1250 1250 1250 1600 1600
7 Power of main motor mm 55 55 55 55 75  75
8 Overall size of machine (L*W*H) KW

5180*4560

*5080

5520*6960

*5725

6780*4850

*5080

5410*7150

*5850

12960×6781

×8865

13550*6850

*6800

9 Machine weight T 38 50 48 57 100 130





2. the detailed introduction





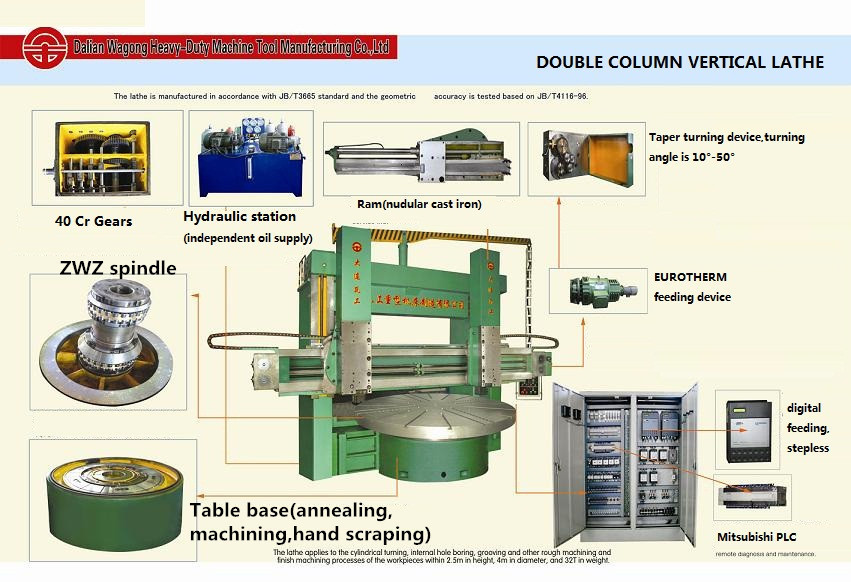

3. the products features :

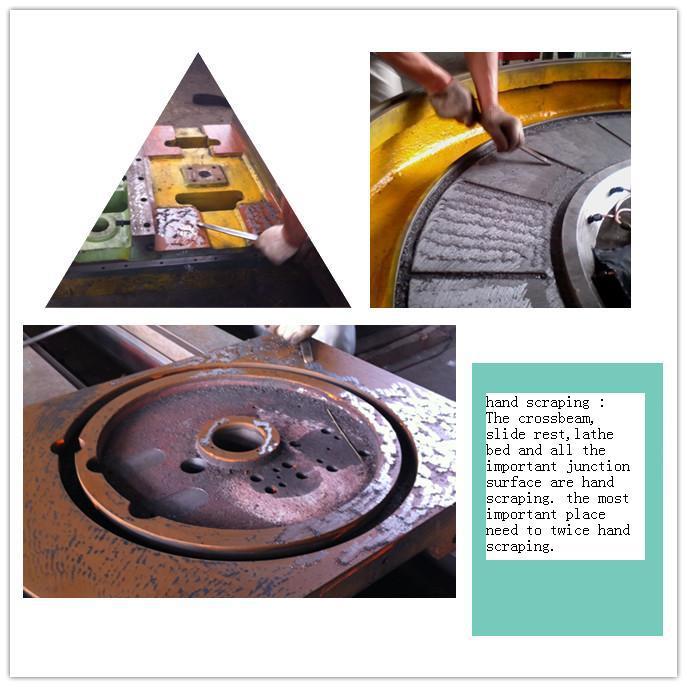

 A)Hand scraping : the crossbeam , slide rest , lathe bed ,guide rail and all the important junction surface are hand scraping. And the workers should have more than ten years hands scraping experience.

 B) Aluminum-copperzinc  alloy: the working table is equipped with the guide rail plate made of aluminum-copper-zinc alloy.

 C) ZWZ bearings: the main shaft bearing are applied famous brand ZWZ bearing ,which enhance equipment accuracy.

 D) Siemens electric system: the PLC is applied Siemens system ,model : Siemens 828D.



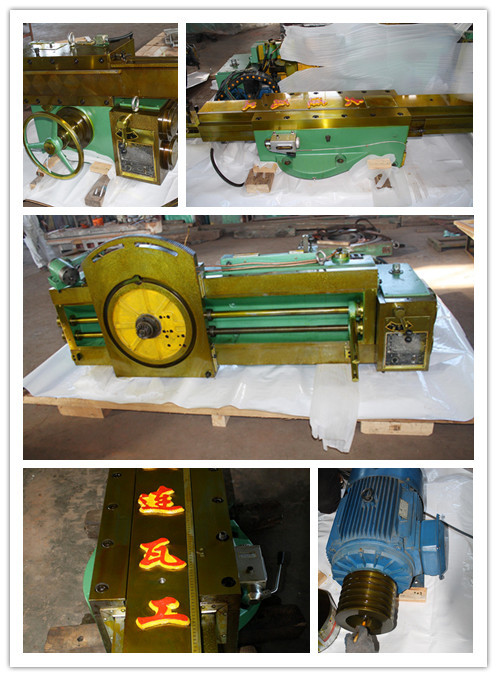

4.  hand scraping

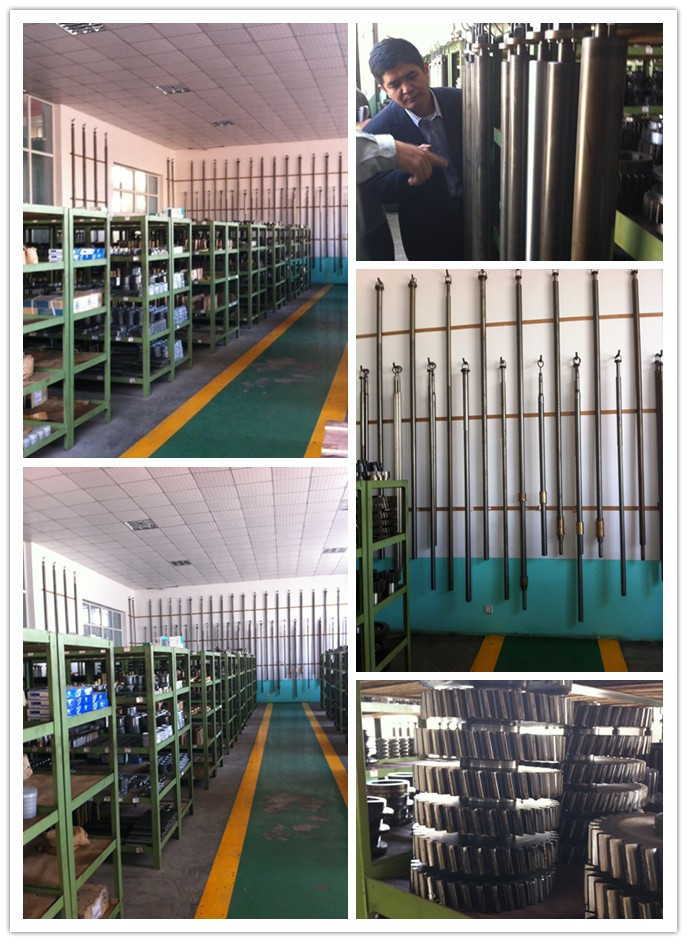

5.  storage management





6. Standards for machine manufacturing and acceptance

    <JB/T4116-1996>

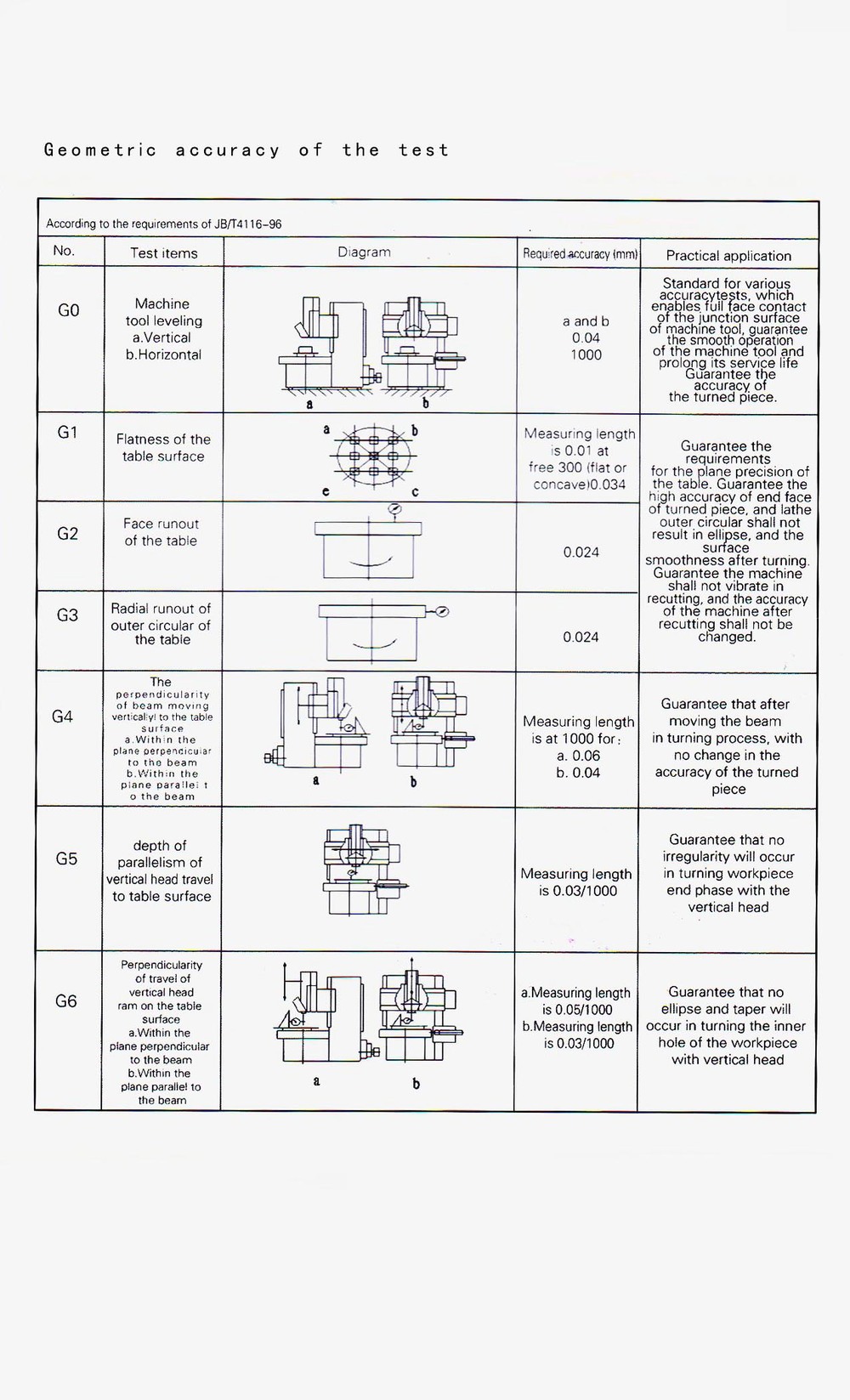

    Single column ,double column vertical lathe accuracy test

    <JB/T3665-2006>

     Single column, double column vertical lathe technical condition .
