• C5225 Metal Processing Machinery Lathe Double Column Machine Tool

C5225 Metal Processing Machinery Lathe Double Column Machine Tool

1. ISO9001 Factory
2. CE
3. over 15 years production

Product Details

Quick Details Parameter

Place of Origin : Liaoning, China
Type : Vertical
CNC or Not : Normal
Condition : New
Max. Swing Diameter : 2500 mm
Voltage : 380V
Weight : 37.5 tons

Description

C5225 Metal Processing Machinery Lathe Double Column Machine Tool



Main functions and features:

This CK5225 vertical lathe machine tool is suitable for motor, water generator, aviation, mining machinery, metallurgy and common machinery industries machining cylindrical turning and boring, tapering and grooving roughly and finely etc.





Parameters:



Models Unit CK5225D
Control type   CNC machine tool
Max.processing diameter mm 2500
Max.processing height mm 1600/2000/2500
Max. weight of workpiece t 10
Machine weight t 33/35/37.5
Type   double column vertical machine tool
workbench diameter mm 2250
Rotary speed of worktable x/min 2~63
Grade   machine levelⅡ extremely
Max.torque of worktable kn.m 58.6
Right tool rest ram stroke horizontal mm 1400
                     vertical mm 1000/1250
Left tool rest ram stroke horizontal mm 1400
                 vertical mm 1000/1250
Beam stroke mm 1300/1700/2300
Beam moving speed mm/min 350
Max. size of tool holder mm*mm 40*50
move degree limit of vertical tool rest ° ±30
Range and grades of tool rest feeding mm/min 0.1~500 extremely
Rapid moving speed of tool rest mm/min 1550
power of main motor kw 55
Guideway of worktable   constant currency stable voltage
Overall dimension(L*W*H) mm 5180*4560*4870(5270/5770)

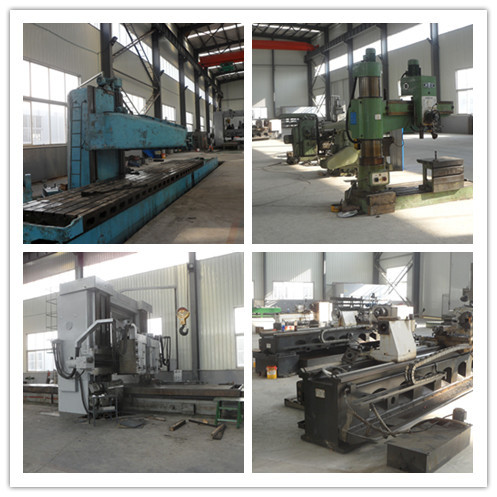

Workshops



We can provide you vertical lathe machine tool, milling machine, boring machine of all kinds with high-quality.



We are factory,so our price is competitive and resonable.
