• C518 Small Size High Efficienty Turning Vertical Lathe

C518 Small Size High Efficienty Turning Vertical Lathe

1. ISO9001 factory
2. CE
3. Over 15 years.

Product Details

Quick Details Parameter

Place of Origin : Liaoning
China : Type
Vertical : CNC or Not
Normal : Condition
New : Voltage
380V : Weight

Description

   C518 Small Size High Efficienty Turning Vertical Lathe



Main functions and features:

This C518 lathe vtl machine is suitable for motor, water generator, aviation, mining machinery, metallurgy and common machinery industries machining cylindrical turning and boring, tapering and grooving roughly and finely etc.





Parameters:





Models Unit C518
Control type   Ordinary lathe
Max.processing diameter mm 800
Max.processing height mm 800
Max. weight of workpiece t 1.2
Machine weight t 6.8
Type   Single column vertical lathe
workbtable diameter mm 720
Rotary speed of worktable x/min 10~315
Grade   level 16
Vertical ram stroke horizontal mm 570
                     vertical mm 650
Side ram stroke horizontal mm 500
                 vertical mm 810
Beam stroke mm 450
Beam moving speed mm/min 440
Max. size of tool holder mm*mm 30*40
move degree limit of vertical tool rest ° ±30
Range and grades of tool rest feeding mm/min 0.8~86 level 12
Rapid moving speed of tool rest mm/min 1800
power of main motor kw 22
Guideway of worktable   Constant current stable voltage
Overall dimension(L*W*H) mm 2080*2621*3405

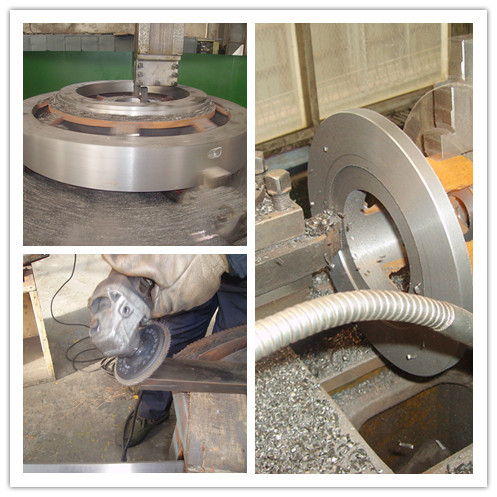

Workshops:



We can provide you vertical lathe, milling machine, boring machine of all kinds with high-quality.







We are factory,so our price is competitive and resonable.
