• C516D Single Column Small Manual VerticalType Center Lathe

C516D Single Column Small Manual VerticalType Center Lathe

1.Factory over 15 years.
2. ISO9001 Certification
3. High Speed lathe

Product Details

Quick Details Parameter

Place of Origin : Liaoning, China
Type : Vertical
CNC or Not : Normal
Condition : New
Voltage : 380V
Max. Swing Diameter : 750 mm

Description

C516D Single Column Small VerticalType Center Lathe





Main structure





Stand column:



The stand columns are divided into two main and auxiliary rails at left and right. The machine can be more stable at run time, more rigid when strong cutting because the span between the main and the auxiliary guide rail becomes large and 55 degrees forked tail on one side of the main rail can be oriented.



Main drive system:



The main transmission gets power from 18.5KW three-phase asynchronous machine or continuous current dynamo. From belt to gear box, through two grades infinitely variable speeds, then the spiral bevel gear changes 90 degrees, the skewed tooth put the gear ring and the worktable into rotation. The wheel gear in the gear box quenching, grinding, gets high transmission accuracy and transmission efficiency, and reduces transmission vibration and noise.



Part of worktable:



The parts of worktable is constituted by the workbench, the main spindle and the workbench base.The worktable rotation and load-bearing consist of hydrostatic slideway and two sets of 3,182,100 series bearings. The workbench embeds with zinc, aluminum and copper alloy guide rail board. Artificial scraping carefully can ensure the verticality with the main spindle, thus reducing the nonuniformity of shearing the oil film when rotating, ensuring the long-term stability of the lathe rotation accuracy.



Beam:



The ball screw, planetary reducer, servo motor in the crossbar constitute the left and right feeding system. The movement of the beam in the column is oriented by 55 degrees guide rail and platen.



Vertical Turret:



Vertical turret is composited with the rotary slide, ram, ball screw, planetary gear and servo motor. All sliding contact surfaces of the vertical turret are embedded with PTFE guide rail soft belt. In the case of full lubrication, it can significantly reduce the friction, reduce vibration, avoid the creeping phenomenon generated in the process of feeding.



Operation:



The  machine lathe price has a separate console. The console has the operation buttons of the full machine. The operators can focus on operating the machine at the button station.



Hydraulic pressure and lubricating:



The machine lathe price hydraulic pressure system is divided into two pressure degrees. High pressure is used for workbench floating. The overflow of oil of low pressure is for gearbox lubrication, helical gear lubrication and so on.





Parameters:





Models Unit C516D
Control type   Manual center lathe
Max.processing diameter mm 750
Max.processing height mm 600
Max. weight of workpiece t 1.2
Machine weight t 6.5
Type   Single column vertical center lathe
workbtable diameter mm 600
Rotary speed of worktable x/min 10~460
Grade   level 16
Vertical ram stroke horizontal mm
vertical mm
Side ram stroke horizontal mm
vertical mm
Beam stroke mm 530
Beam moving speed mm/min 410
Max. size of tool holder mm*mm
move degree limit of vertical tool rest ° ±30
Range and grades of tool rest feeding mm/min 0.1~500 extremely
Rapid moving speed of tool rest mm/min 2000
power of main motor kw 18.5
Guideway of worktable   Constant current stable voltage
Overall dimension(L*W*H) mm 2400*2450*3370

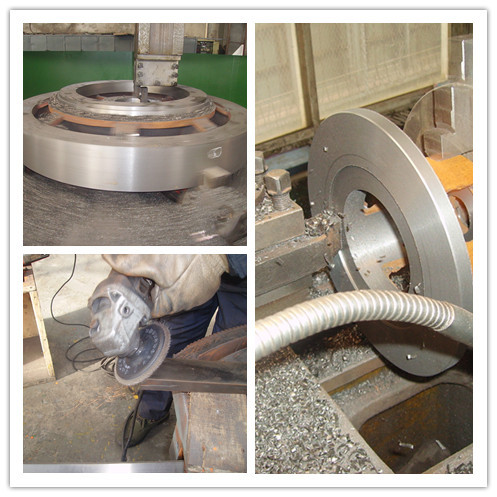

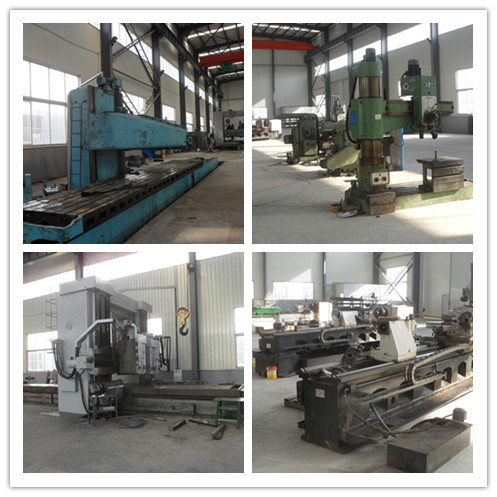

WORKSHOP
