Wire diameter: : 1.6-3.5mm
Warp spacing: : 65mm> 115mm> 165mm
Warp form： : Continuous
Rated voltage: : 380v
Weft spacing: : 250-300mm
Weft form： : Pre-cut wire
Welding spots: : 6-8
Welding speed: : 45times/min
Dimension: : 6*1.5*1.5m

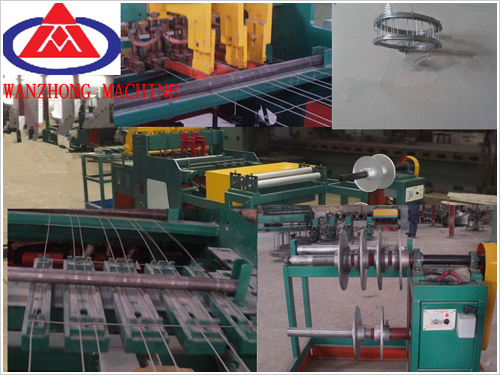

1.Brick force Mesh Machine adopts electrical synchronous control technique, both separate-phase welding and welding time is composed of digital and integrated electric circuit. This operation is highly accurate. It has a stable function, firm welded point and without welded tracks.
2.The warp is fed from coils, the weft is precut, fed from hopper driven by stepper motor.
3.Mesh pulling system adopts elastic tension link and opening position equipment, the opening is easy to adjust accurately and can be adjusted freely within a certain range.
4.The finished products can be in coil or in panel automatically.
Anping Wanzhong Wire Mesh Products Co., Ltd. is specialized in producing reinforcing construction mesh welding machine, breeding mesh welding machine, steel wire mesh welding machine, wire mesh fence welding machine, automatic steel wire mesh welding machine, 3D wire mesh panel machine, cattle fence machine, chain link mesh machine, welded wire mesh machine and so on.
Our machines are mainly used in the fence for highway, railway, airport, garden, hardware, wire mesh for construction, etc.
Our company has advanced production equipment, first-class technologies and a complete quality management system. With good quality, reasonable prices and excellent services, we have exported our goods to the USA, Mexico, New Zealand, the Middle East, Italy, Turkey, Southeast Asia, Singapore and so on.
Our after-sales service team provides comprehensive support and assistance for WANZHONG's customers worldwide, during both the installation and commissioning periods, as well during the entire service life of our products. Highly qualified technicians are available to make service visits to customers and carry out maintenance.
Spare parts are available, and can be purchased, for all equipment supplied by WANZHONG. And Wanzhong will give advice and provide assistance in handling spare parts.
We would like to cooperate with business friends from home and abroad. For more information, please feel free to contact us.
