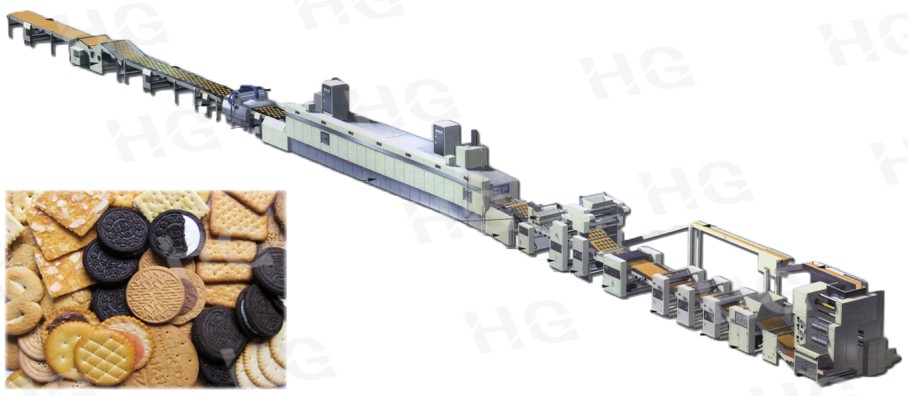

Biscuit production line HG-SWBPossible Products: Soft biscuits Hard biscuits Crackers (soda biscuit) Cookies
Fully-automatic Large- and Medium-scale Sandwich Biscuit, Semi-hard Biscuit and Crisp Biscuit Production Line: As the newest-generation advanced equipment among traditional equipment in China, it consists of a flour mixing machine, a permian paper machine, a sandwich crispness machine, a forming machine, an egg brushing machine, a granule applicator, a tunnel furnace, a turning machine, an oil sprayer and a cooling conveyance and finishing machine.
◇ PLC control，touch screen control，Flexible operation simple
◇ It can meet the technological requirement for production of different biscuits
◇ Main electronic equipments are adopted from Siemens
◇ The machine is heated with gas. Rapid heating up and energy saves
◇ Products with uniform characteristics such as coloring, weight and residual moisture
Permian Paper Machine：As a working procedure auxiliary machine indispensible for producing high-grade semi-hard biscuits, it is characterized by adopting the cutting laminated layer method, and the number of the laminated layers are 6 to 7 layers.
Forming Machine: It adopts PLC program linkage control, the forming machine only needs adjustment once, and its linkage program is stable when it is used for a long time; and the forming machine consists of a four-channel rolling mechanism, a double-roll (printing and cutting) forming mechanism and an excessive material recovering mechanism.
Tunnel Type Baker: It has three heating types: Gas, electric heating and heat transfer oil; according to local energy conditions, customers in different areas can choose one type of baker which is most suitable for their local energy conditions.
·Full automatic PLC control system, all of the control elements adopt international well-known brand, high precision and reliable.
·This equipment is designed according to the food sanitation standard,and all of the parts in contact with material adopt stainless steel SUS316L or SUS304.
·The touch screen, intuitive man-machine interface.
·The oven external can use stainless steel according to customer requirements,nice outlook and easy to clean.Baking Ovens heat preservation cotton adopts the combination of glass fiber and imported rock wool,heat preservation,moistureproof,noise reduction effect is good.
Dough making → Biscuit forming → Baking → Oil sprayer → Cooling → Stacking
Main technical parameters:
Type specification 1200types 1000types 620types
Production capacity 32t/days(24h) 24/days 12t/days
The total installed power 210kw 190kw 120kw
