Introduction

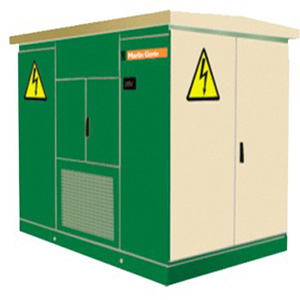

Biosco prefabricated substation is designed for MV/LV substations for public and commercial distribution and industrial buildings up to 12KV. Safety and operating dependability.
Features
1. Unique temperature rise process, optimal ventilation structure
2. Elegant appearance, ability of anti-corrosion
3. Easy of operation and installation, modular multi-functional design
Specifications
Name

Units
Data
Cubicle
Degree of temperature rise
grade
10
Degree of noise
dB
44
Mediumvoltage
        Unit
Rated frequency
HZ
50
Rated voltage
kV
12
Rated power frequency withstand voltage, phase to earth,  phase-to-phase, vacuum fracture/isolated fracture
kV
42/48
Rated impulse withstand voltage, phase to earth, phase-to-phase, vacuum fracture/isolated fracture
kV
95/110
Rated Voltage
A
630
Rated short-time current
kA
20/3or25/1
sec
Rated peak withstand current
kA
50 or 63
Degree of protection
IP33D

Lowvoltage
Unit
Rated Voltage
V
400
Main circuit rated  current
A
100~1600
Rated thermal stability current
kA
30/1sec
Rated dynamic current
kA
63
Degree of protection
IP33D /IP34D

Compensation capability
kvar
0~300
Transformer
Unit
Rated capability
kVA
160~1000
Degree of protection
IP23D



Company Profile

We specialize in the production of primary power equipment, including metal oxide surge arrester(MOA), polymer housed metal oxide arrester for transmissionlines, metal oxide varistor,on-line monitors for surge arrester and surge arrester monitor and so on.
After 30years technical innovation and industrial transformation, we have yearly production capacity for 4.5 million pieces ofΦ32-128metal oxide varistor (MOV), 0.5 million sets of 0.22-1000KV metal oxide surge arrester.
Our main products have passed ISO9001 quality management system certificate, ISO14001 environment management system certificate, OHS18001 occupational health and safty management system certificate and KEMA Netherland certificate.
Our arrester market share reaches above 32% in China market, especially 500KV surge arrester bid winning rate in the scale bidding of state grid corporation of China in the lastest three years, was the top one during the same industry in China.
