Beverage Filling Machine

Specifications Prof. beverage filling machine 1.Capacity:200-1000ml 2.Semi-auto/stable performance 3.Stable performance, prof. service zhangmimin122@126.com

Product Details

Quick Details

Description

Beverage filling machine:BW-1000-3 type machine consist of three separate machines: carton forming machine, capping machine and filling machine. The entire machine is made of food-grade stainless steel (excluding the support), and the surface is special processed to make the appearance beautiful.

1.  Work flow:



1) Carton Forming Machine: Cardboard → Put the carton onto the mandrel(manually) → Bottom preforming (manually) → Bottom heating → Bottom sealing → Top open carton

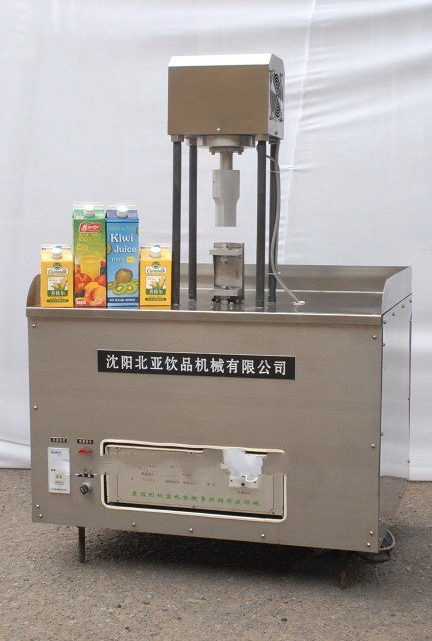

2) Capping Machine: Top Open Carton →Put the cap into and the carton's capping hole(manually) → Ultrasonic welding → Top Open Carton with Cap

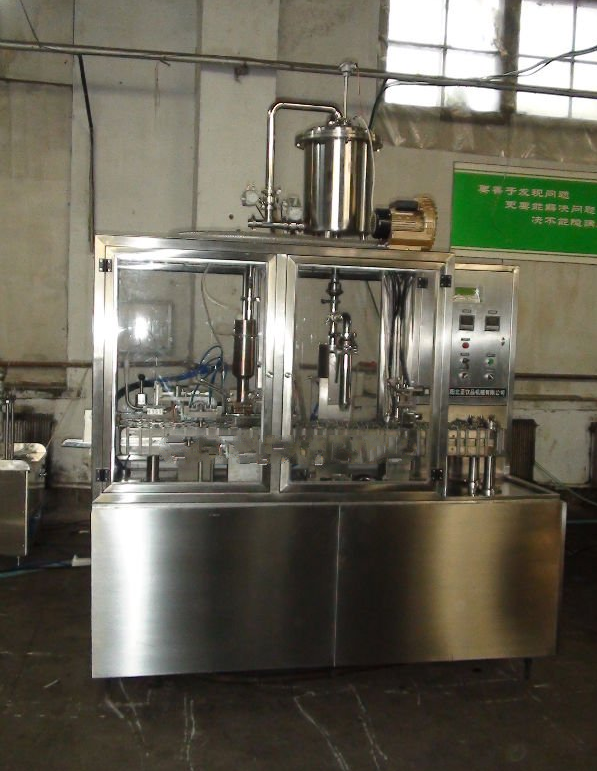

3) Filling Machine: Top Open Carton with Cap → put the carton onto the conveyor(manually) → Top preforming → Filling → Top heating → Top sealing → Date printing → Finished product



2.  Suitable for filling:



Milk, yogurt, cream, beaten egg, soya been milk, juice, tea drink, corn drink, pure water,

sauce, wine, cleaning solution, chemical product, granular and dry powder, etc



3.  Technical parameter:



Capacity

200-1000ml

Output

800-1200 cartons/h

Packing material

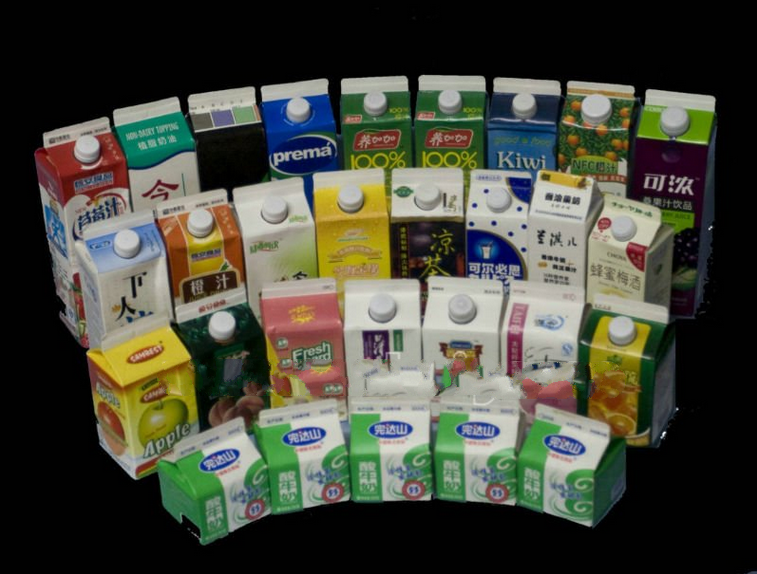

cardboard carton / aluminium foil carton

Shelf life

Cold filling: milk, yogurt: 7--21days ( 2-6°C storage)

acid juice: 30–60 days (2-6°C storage)

whipped cream: 12 months (-18°C storage)

Hot filling: juice: 12 months (normal temperature)

Capping

With capping (Optional)

Overall power

22KW (three phases of power electricity)

Compressed air

Pressure: 1.0-1.4 Mpa

Flow rate: 0.8-1.0M3/min

Cooling water

Flow volume: ≥20L/ min

Temperature: normal temperature

Size: (L*W*H)

Carton forming machine: 1.3m*0.9m*1.5m

Capping machine: 0.8m*0.6m*1.2m

Filling machine: 2.0m*0.9m*2.6m

Net Weight

1200kg

Installation requirement

Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not

need to make angle.

Company Profile

Shenyang Beiya Beverage Machinery Company is the earliest to research and design gable top carton filling machine in domestic market. It is a high technology company combining production and R&D as an integrated construction. Through introducing foreign advanced technology and independent R&D, Beiya designed and produced the first set of gable top carton filling machine, breakthrough the situation that this kind of filling machine monopolized by foreign products. Proved by application practice of internal over 258 customers, this filling machine’s function and quality have reached, even surpassed similar products in foreign countries, with a price one third of foreign equipments. At its excellent function and price effectiveness, it is extensively welcomed by internal and external customers.



Beiya company is located in Shenyang, which is a famous machinery equipment manufacturing base in China. High level R&D research team, high performance machinery processing equipments, high quality production worker team, all of which maintain Beiya products’ technology and quality level at a high starting point and in a high standard. The major products of Beiya are gable top carton filling machine series, which is mainly applied in diary food, beverage, condiment, liquor and cream such industries.



Beiya, at the believe of “sincerity bringing out trust and trust bringing out the future”, is willing to serve the customers and reward the society with the best quality products and the best service.
