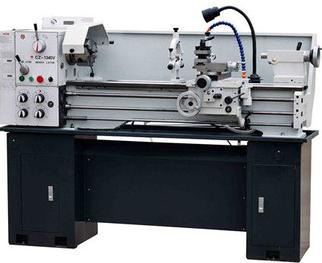

• Bench lathe CZ1440V

Bench lathe CZ1440V

High precision Variable speed Gap-bed lathe Swing over bed:400mm Distance between center: 1000mm. Please contact:wangxun124@163.com

Product Details

Quick Details

Description

Product Description
MODEL CZ1340V CZ1440V CZ1237V - VARIO
VARIABLE SPEED
Supersonic frequency hardened bed ways
Precision roller bearing for spindle
High quality steel, ground and hardened gear inside headstock
Easy and fast operating gearbox
Enough strong power motor
ASA D4 camlock spindle nose
Various threads cutting functions available
BENCH LATHE
ITEM   CZ1440V
Swing over bed mm φ355
Swing over carriage mm φ220
Swing over gap mm φ500
Width of bed-way  mm 186
Distance between centers mm 1000
Spindle taper   M.T.5
Spindle bore mm φ38
Step of speed   Variable speed
Range of speed rpm low : 70~480
high: 480-2000
Head   D 1 -4
Metric thread   26kinds (0.4~7mm)
Inch thread   34kinds(4~56T.P.I)
Moulder thread   16 kinds(0.35~5M.P)
Diametral thread   36 kinds(6~104D.P)
Longitudinal feeds mm/r 0.052~1.392 (0.002”~0.0548”)
Cross feeds mm/r 0.014~0.38 (0.00055”~0.015”)
Diameter lead screw  mm φ22(7/8”)
Pitch of lead screw   3mm or 8T.P.I
Saddle travel mm 1000
Cross travel mm 170
Compound travel mm 74
Compound travel mm 95
Barrel diameter mm φ32
Taper of center mm M.T.3
Motor power Kw 1.5(2HP)
Motor for coolant system’s power Kw 0.04(0.055HP)
Machine(L×W×H) mm 1920×760×760
Stand(left) (L×W×H) mm 440×410×700
Stand(right) (L×W×H) mm 370×410×700
Machine Kg 505/565
Stand Kg 70/75
Loading amount    22pcs/20’container

Company Profile

 Chizhou Household Machine Tool Co., Ltd., established in 1958, locates in Chizhou City of Anhui Province. The former name is Guichi Agriculture Machinery Factory, which owns a long history after several evolutions. Our formerly produced products include diesel engines, walking-tractors, agricultural motors and so on. Since 1986, our company has switched to manufacture household combination machine tools - multi-purpose machines for European and American markets, renamed as Anhui Chizhou Household Machine Tool Co., Ltd.

We are specialized in small size machine tools and CNC machines, and are one of the five important enterprises of small-size machine tools, "Provincial High Technological Enterprise", and "National Export Base of Mechanical and Electrical Products", with direct import and export right. We take the quality as life and we establish a scientific and serious quality guarantee system. Our quality system is ISO9001 certified. We gained CE certificate from TUV in 2007 for all of our products.

There are nearly 400 personnel in our company, including 72 technological developing and research persons. We have a technology research team headed by Mr. Xu Xiangtai who is a nationally famous CNC expert, and a provincial technology center was founded by us, too.

Our company is divided into north and south areas. The total area is 150,000 square meters. The workhouse area is 69,000 square meters. The south area, of 90,045 square meters, is located in Industrial Zone of South Part of Chizhou City with standard workhouses and multi-offices of 36,000 square meters. The south area is the center of decision, production, technology development and research, marketing and management of our company and takes on the assembly work of main parts and precisions parts. The north area, of 59,400 square meters, is beside the south part of Yangtze River with the workhouses of 33,000 square meters, and takes on the work of foundry, spare part manufacture, heat treatment and packing.
