• Automatic steel mesh welding machine WZ-2500A

Automatic steel mesh welding machine WZ-2500A

Automatic steel mesh welding machine WZ-2500A is controlled by the special computer, the welding current and welding time in each welding transformer can be individually adjusted.

Product Details

Quick Details Parameter

Wire diameter: : 3.0-8.0mm
Weft/Warp spacing: : 50-200mm
Width: : 2500mm
Welding speed: : 80times/min
Welding spots: : 48
Warp/Weft form: : Pre-cut wire
Rated voltage: : 380V
Rated power: : 125KVA×8
Weight: : ≈ 6T

Description

Function features of Automatic steel mesh welding machine WZ-2500A
1、Automatic steel mesh welding machine WZ-2500A is controlled by the special computer, the welding current and welding time in each welding transformer can be individually adjusted. The machine operating interface is made up with color touch screen and control buttons, easy to operate.
2、Host framework structure, stable performance, the welding pressure is continuously adjustable, solid and perfect welding spot.
3、Integrated deceleration electromagnetic brake motors for power, inverter control, adjustable speed.
4、Modular design for the upper and lower electrodes, convenient to adjust the mesh.
5、weft-hopper obtains wires by motor driver devices, electric magnetic increase feeding device auto-feeding the wefts into the preparation area of disc device from the large hopper, and the weft hopper is installed in the removable pull rid, convenient to adjust and maintain.
6、The mesh pulling part driven by servo motor can be set a variety of weft space in the same mesh, pull the mesh continuously back and forth to extend the size of mesh, and use pneumatic clamping device to accurate weft spacing.
7、The warp feeding part driven by stepper motor can be fed the warps which a whole mesh needs when welding, so that the machine is very short interval of time.
8、Automatic CNC steel mesh welding machine WZ-2500A is equipped with a mesh roller frame and removable warp frame.

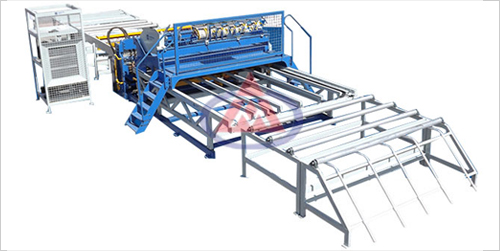

Automatic steel mesh welding machine WZ-2500A

Products & Application of Automatic steel mesh welding machine WZ-2500A:
Products such as coal mine supporting mesh, wire mesh fence, high-rise building steel bridges mesh, reinforcing mesh applied in construction, road and so on.

Company Profile

Anping Wanzhong Wire Mesh Products Co., Ltd. is specialized in producing reinforcing construction mesh welding machine, breeding mesh welding machine, steel wire mesh welding machine, wire mesh fence welding machine, automatic steel wire mesh welding machine, 3D wire mesh panel machine, cattle fence machine, chain link mesh machine, welded wire mesh machine and so on.
Our machines are mainly used in the fence for highway, railway, airport, garden, hardware, wire mesh for construction, etc.
Our company has advanced production equipment, first-class technologies and a complete quality management system. With good quality, reasonable prices and excellent services, we have exported our goods to the USA, Mexico, New Zealand, the Middle East, Italy, Turkey, Southeast Asia, Singapore and so on.
Our after-sales service team provides comprehensive support and assistance for WANZHONG's customers worldwide, during both the installation and commissioning periods, as well during the entire service life of our products. Highly qualified technicians are available to make service visits to customers and carry out maintenance.
Spare parts are available, and can be purchased, for all equipment supplied by WANZHONG. And Wanzhong will give advice and provide assistance in handling spare parts.
We would like to cooperate with business friends from home and abroad. For more information, please feel free to contact us.


Anping Wanzhong Wire Mesh Products Co., Ltd.
