• Automatic beverage hot Filling Machine

Automatic beverage hot Filling Machine


Automatic Bottle Juice beverage Filling Machine hot filling
drinking Water / juice/ carbonated filling equipment
E-mail:
hexiaojing523@126.com

Product Details

Quick Details Parameter

Application : Food, Beverage
Packaging Type : Bottles, Barrel, Pouch
Packaging Material : Plastic, Glass
Voltage : 380v/50Hz
Dimension(L*W*H) : 5000*2800*2400mm
Weight : 7500kg
Certification : ISO& CE

Description


E-mail : hexiaojing523@126.com

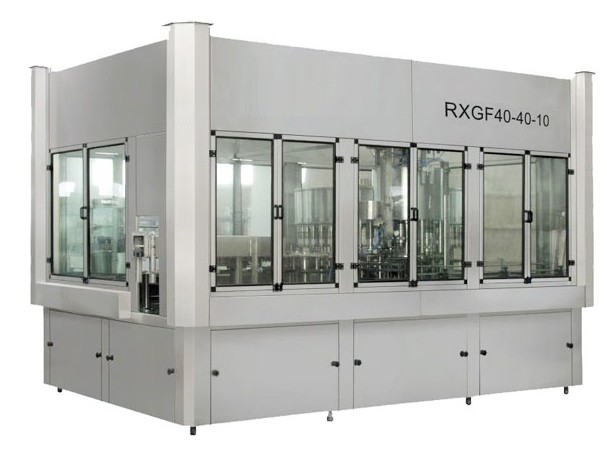

hot filling machine 1

Bevergae hot filling  production machine:
1.Stable filling valve
2.PLC touch screen
3.Bottle volume:200-2000ml
4.Capacity:12000-14000BPH

Hot Beverage Fruit Juice Production Machine/Equipment/Plant





This juice production machines/equipments/plants are designed especially for bottling synthetic juices (RTS) or HOT filled juices, tea (filled at up to 98 centigrade degrees), with optional capacity ranging from 1000BPH to 32000BPH, it adopts the pressure & rotative filling style.







Features of  Fruit Juice Production Machine Including Packaging Machine:



1. Centre filling valves used which are designed for maximum flow rate and minimum bottle distortion during HOT filling.



2. Inbuilt CIP arrangement provided on the machine for fill tank and fill valve sanitation.



3. Dummy caps provided fitting on all filling valves during CIP.



4. Automatic PLC controlled valve washing cycle before commencement of every production cycle for overall hygiene.



5. Unique filling cam designs which prevents filling up to the bottle collar without spillage.



6. Bypass line provided for flushing the product fill tank after completion of CIP



7. Supper heavy stainless steel juice tank build in Welcome to view our hot filling machine for juice and tea drink.







Advantages of  Fruit Juice Production Machine Including Packaging Machine:



A. High automation level, compact structure, attractive appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity, low labor intensity.



B. The main machine adopts advanced PLC control technology



C. The key electric elements adopt products made by international famous companies, such as Mitsubishi and Siemens.







Technical Parameter of Fruit Juice Production Machine Including Packaging Machine:

Model

RXGF40-40-12

Production Capacity(500ml)

12000-14000BPH

Washing Heads

40

Filling Heads

40

Capping Heads

15

Suitable Bottle Size

Round or Square

Dimeter of Bottle

Φ50-Φ100

Height of Bottle

150-310

Compressed Air Pressure

0.3-0.7

Washing Medium

Sterilized water

Washing Pressure

0.25

Power(kw)

7.5

Overall Dimension(mm)

5000*2800*2400

Weight(kg)

7500
