  • Automatic Wire Ranger and Winder

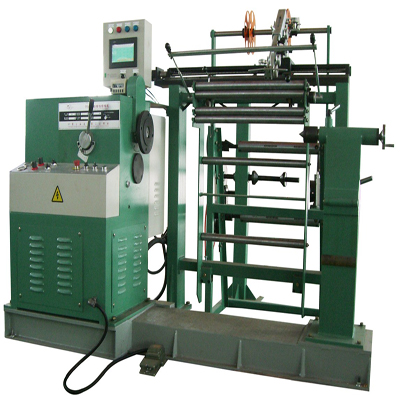

Automatic Wire Ranger and Winder

Controlled by servo system Clean arrangement, lower noise Easy operation Stable transmission auto coil winding machine Please contact us! Email:
yuyang@mec.com.cn

Product Details

Quick Details

Description


Skype:snowing1203
MSN:luckywang03@hotmail.com

Wire coil winding machine is new designed automatic wire ranging and wind machine innovated by our Factory. The product has different advantages as stabile transmission, clean arrangement, lower noise, easy operation, frequency inverted controlled, stepless speed adjustment and accurate counting. The wire arrangement device is controlled by intelligent servo system with human-machine interface. The machine is a favorable and economic one among similar products.

Main Technical Parameters
NO.
Item
Parameters
1
Center height
1000mm
2
Winding width (max.)
≤1000mm
3
Max. ranging speed
3m/min
4
Stepping scope
0.1~5mm
5
Stepping accuracy
0.1mm
6
Max. output torque
800N.m
7
Rated brake torque Power-down brake
50N.m
8
Maximum load
1000kg
9
Total weight
1500kg
10
Power of motor
3kw



Company Profile

We are a professional player in transformer industry,  our annual total production capacity is about 18,000,000 KVA, our factory covers an area of 370,000 square meters and a building area of 100,000 square meters, with total assets of 350 million CNY and more than 1000 staff members with engineering and technical employees accounting for 21%.
Our main products include 220kV and below&200MVA and below oil immersed power transformers, 110kV and below furnace transformers, 110kV and below rectifier transformers, 35kV dry type transformers, 35kV combined transformer substation, 35kV and below amorphous alloy transformer, 35kV and below reactor etc. All of our products' performance measures up to the standards established by International Electric Committee (IEC).
We have many advanced production and testing facilities which imported from Germany and Japan, such as silicon sheet shearing automatic lines, automatic and continuous extrusion lines of electromagnetic wires, Kerosene vapor vacuum drying systems and more than 1,500 sets of production and complete testing systems for professional transformer production and other testing equipment. We can meet the requirements of customers completely.
 We have obtained ISO9001 quality management system and ISO14001 environmental management system certifications and in strict accordance with these standards in our routine.
We also obtained the CE certificate, CTQC test report, Nation Standardization Management AAA Certificate, National Measuring System Certificate and others. Many prizes also have been awarded to us in the past years by the relevant national Authority and local government.
Owing to our good reputation on quality and service, our products have been exported to more than 20 overseas countries and regions.
We sincerely hope we can provide you with best products and satisfied service, and you are always warmly welcome to visit us.
