• Automatic Tape Production Line

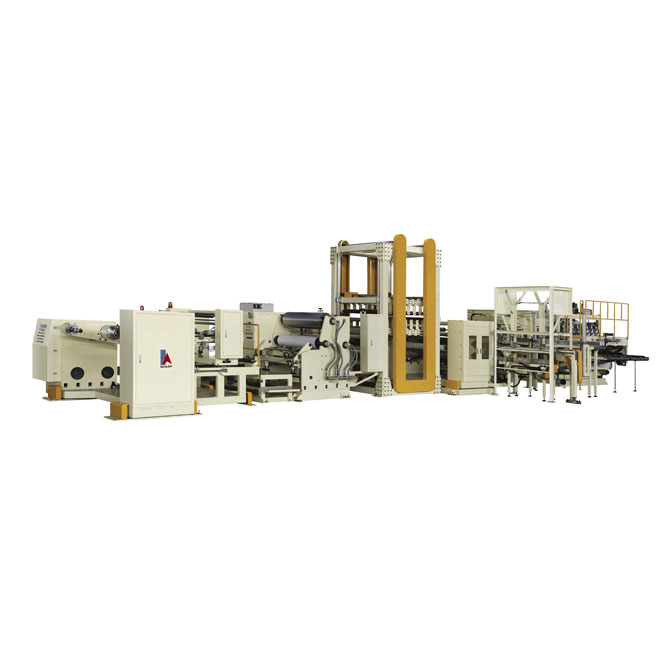

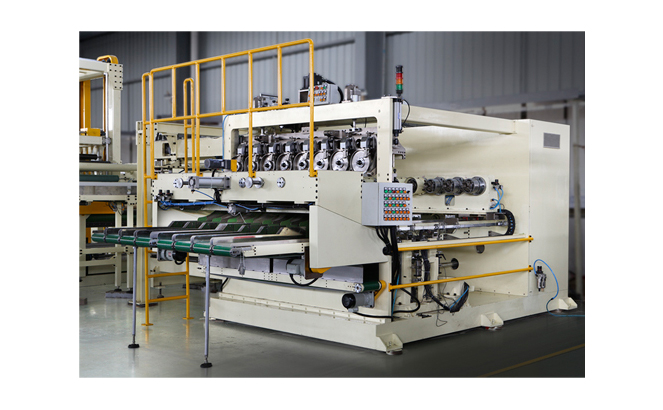

Automatic Tape Production Line

Automatic Tape Production Line is mainly suitable for cloth tape, Kraft paper tape,self-adhesive trademark, etc.

Product Details

Quick Details Parameter

Coating mode: : slot die
Coating width: : 1350mm
Coating weight: : 20-70g/m2
Uniformity: : 30g/m2 ≤±1.5 g
Coating speed: : 30g/m2 180m/min
Machine speed: : 200 m/min
All roller length: : 1450mm
Max. unwinding diameter: : 1000 mm
Paper tension: : ≤400N
Pump rate: : 600kg/h(EVA.3000 165℃)
Melt rate: : 200kg/h(EVA.3000 165℃)
Rewinding diameter: : Min25m(Maxφ130mm)
Installed power: : 100kw
Power: : 380V±15%
Overall dimension: : 18×6.5×3.8

Description


Automatic Tape Production Line is mainly suitable for cloth tape, Kraft paper tape,self-adhesive trademark, etc.


Company Profile

Zhejiang Huaan Machinery Co., Ltd. was established in 1997, is a professional hot melt adhesive coating and laminating equipment manufacturing enterprises, has a group of specialized personnel engaged in research and development, production, sales and service. The Huadi Machinery Co., Ltd., was established in 2002 in Shanghai, specializes in high-rise coating and laminating equipment.
Our hot melt equipments are widely used in Adhesive, self-adhesive labels, medical accessories, medical plaster, disposable women and children supplies, filters, automotive, carpet, hot melt film, packaging, non-woven,, functional clothing laminating fabric and many other industries.
Huaan is willing to cooperate with new and old customers hand in hand and willing provide them with even newer and better products by advanced technology, rich experience and sincere service!
